09120080 Series
Manufacturer: HARTING
Beta
⌘K

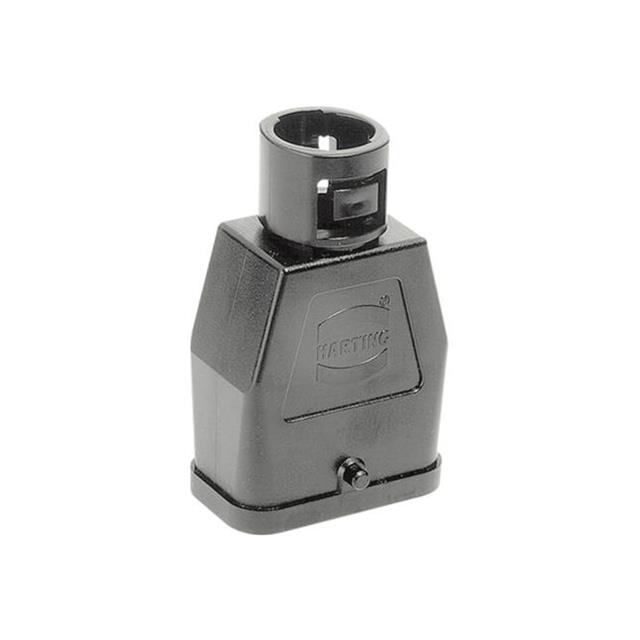

HEAVY DUTY CONNECTOR, PG21, HOOD, TOP ENTRY, PC (POLYCARBONATE) BODY, 1 LEVER
| Part | Housing Color | Ingress Protection | Connector Type | Lock Location | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Thread Size | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Features | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Black | IP65 IP67 | Hood | Locking Clip (1) on Base Bottom | 47.9 mm | 54 mm | 2.126 in | 1.886 in | 1.13 " | 28.7 mm | PG21 | Polycarbonate (PC) | 125 °C | -40 C | Top Entry | ||
 HARTING | Black | IP65 IP67 | Base - Panel Mount | Locking Clip (1) on Base Bottom | 45.9 mm | 19.5 mm | 0.768 in | 1.807 " | 1.13 " | 28.7 mm | Polycarbonate (PC) | 125 °C | -40 C | Bottom Entry | |||
 HARTING | |||||||||||||||||
 HARTING | Black | IP65 IP67 | Hood | Locking Clip (1) on Base Bottom | 47.9 mm | 54 mm | 2.126 in | 1.886 in | 1.13 " | 28.7 mm | Thermoplastic | 125 °C | -40 C | Top Entry | |||
 HARTING | Black | IP65 IP67 | Base - Panel Mount 90° | Locking Clip (1) on Base Bottom | 45.9 mm | 33 mm | 1.299 in | 1.807 " | 1.181 in | 30 mm | PG16 | Thermoplastic | 125 °C | -40 C | Side Entry | ||
 HARTING | Black | IP65 IP67 | Hood - Coupling | Locking Clip (1) on Hood | 45.9 mm | 50.5 mm | 1.988 " | 1.807 " | 1.051 " | 26.7 mm | Thermoplastic | 125 °C | -40 C | Bottom Entry Top or Bottom Entry | Cable to Cable | ||
 HARTING | Black | IP65 IP67 | Hood | Locking Clip (1) on Base Bottom | 47.9 mm | 54 mm | 2.126 in | 1.886 in | 1.13 " | 28.7 mm | PG16 | Thermoplastic | 125 °C | -40 C | Top Entry | ||
 HARTING | Black | IP65 IP67 | Base - Panel Mount 90° | Locking Clip (1) on Base Bottom | 45.9 mm | 33 mm | 1.299 in | 1.807 " | 1.181 in | 30 mm | Thermoplastic | 125 °C | -40 C | Side Entry | |||
 HARTING | Black | IP65 IP67 | Hood | Locking Clip (1) on Base Bottom | 47.9 mm | 54 mm | 2.126 in | 1.886 in | 1.13 " | 28.7 mm | PG16 | Polycarbonate (PC) | 125 °C | -40 C | Side Entry | ||
 HARTING | Black | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (1) on Base Bottom | 45.9 mm | 18.5 mm | 0.728 in | 1.807 " | 1.142 in | 29 mm | Zinc Die Cast | 125 °C | -40 C | Bottom Entry | Chromate |
