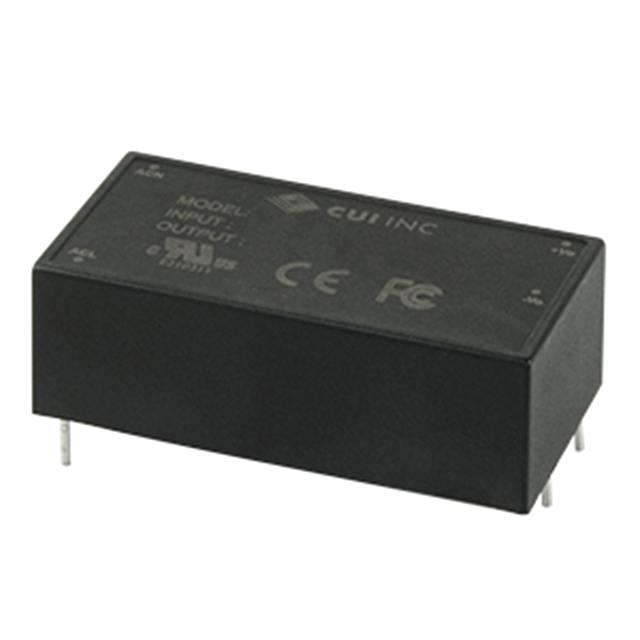

PSK-6B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 0.25A 6W 4-PIN DIP MODULE TUBE
| Part | Package / Case | Approval Agency | Efficiency | Line Regulation | Standard Number | Voltage - Output 1 | Features | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Type | Current - Output (Max) [Max] | Load Regulation | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 4-DIP Module | CB Scheme EN FCC IEC UL | 79.03 % | 1 % | 60950-1 61000-3-2 61000-3-3 62368-1 | 24 V | Universal Input | 1 | 1 " | 2 in | 25.4 mm | 50.8 mm | 0.66 in | 16.7 mm | ITE (Commercial) | Through Hole | 70 °C | -25 °C | 6 W | Enclosed | 250 mA | 3 % | |
 CUI Inc. | 4-DIP Module | CB Scheme EN FCC IEC UL | 79.03 % | 1 % | 60950-1 61000-3-2 61000-3-3 62368-1 | 9 V | Universal Input | 1 | 1 " | 2 in | 25.4 mm | 50.8 mm | 0.66 in | 16.7 mm | ITE (Commercial) | Through Hole | 70 °C | -25 °C | 6 W | Enclosed | 670 mA | ±5% |
