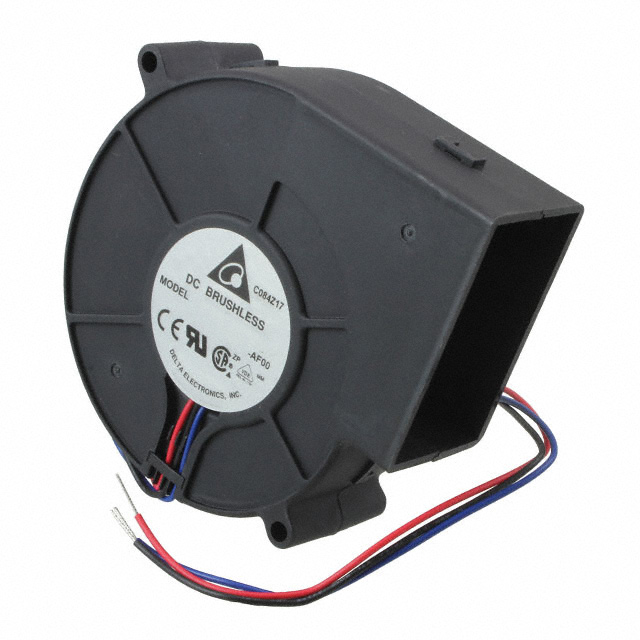

BFB0712 Series

Catalog

FAN BLOWER 75.7X30MM 12VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Air Flow	Air Flow	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Weight	Weight	Termination	Power (Watts)	Approval Agency	Voltage - Rated	Noise	RPM	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Width [y]	Features	Size / Dimension [z]	Ingress Protection

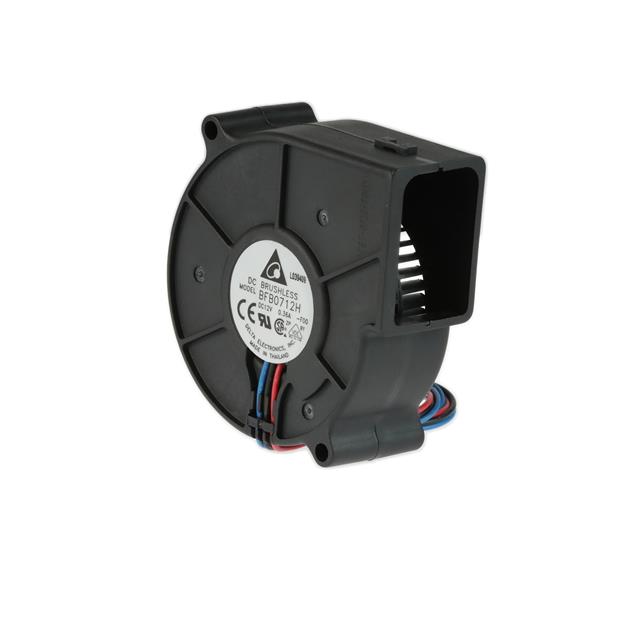

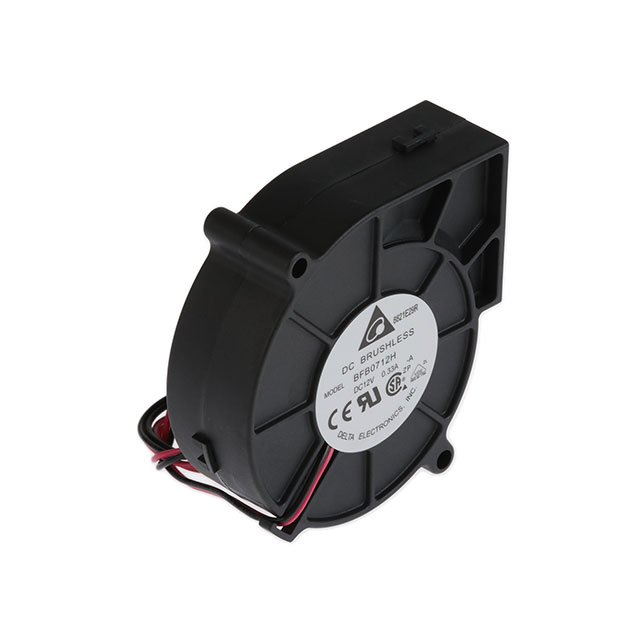

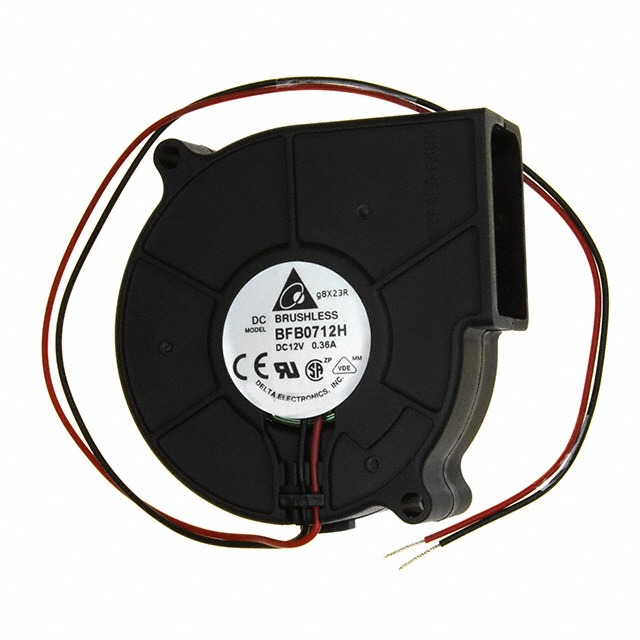

Delta Electronics BFB0712H	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	0.22 A	11.3 CFM	0.316 m³/min	Ball	-10 °C	60 °C	119.6 Pa	0.48 in H2O	95.71 g	0.211 lb	2 Wire Leads	2.64 W	CE CSA UL VDE	12 VDC	38 dB(A)	2900 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	30 mm

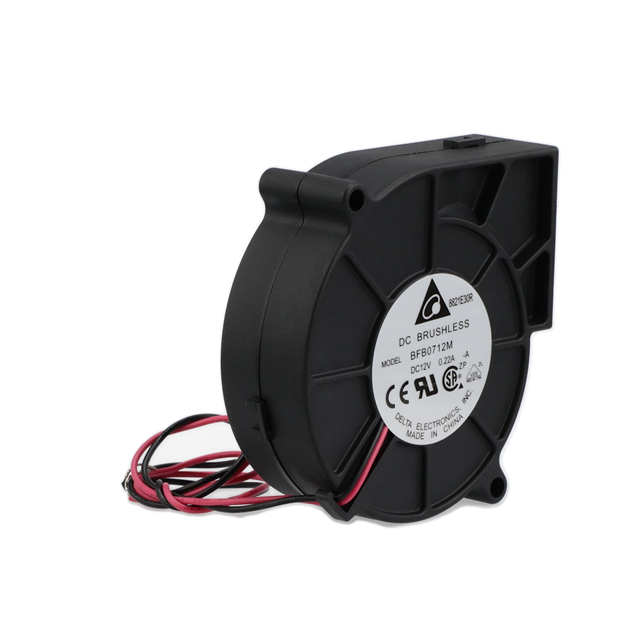

Delta Electronics BFB0712M-AF00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic		11.3 CFM	0.316 m³/min	Ball	-10 °C	70 °C	119.1 Pa	0.478 in H2O	90.26 g	0.199 lb	3 Wire Leads	1.92 W	CE CSA UL VDE	12 VDC	43 dB	3400 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm	Locked Rotor Protection Speed Sensor (Tach)

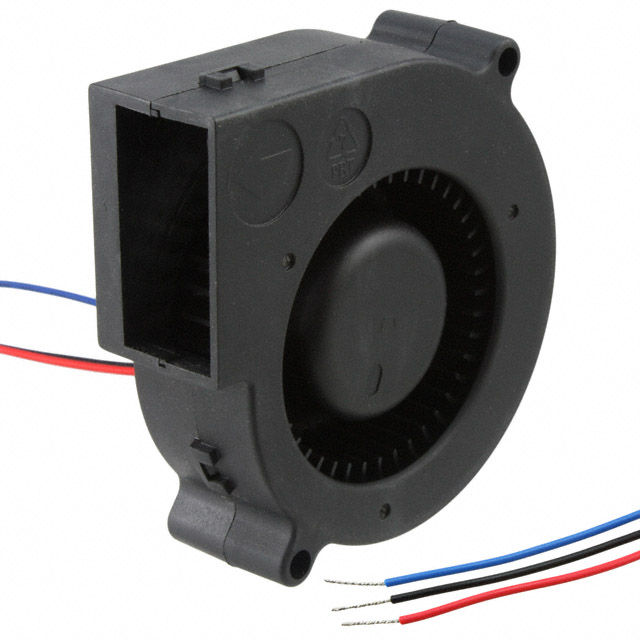

Delta Electronics BFB0712HH-AF00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	0.34 A	15.3 CFM	0.428 m³/min	Ball	-10 °C	70 °C	243.4 Pa	0.977 in H2O	90.26 g	0.199 lb	3 Wire Leads		CE CSA UL VDE	12 VDC	51 dB(A)	4400 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712L-F00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	60 mA	7 CFM	0.196 mł/min	Ball	-10 °C	70 °C	39.1 Pa	0.157 in H2O	95.71 g	0.211 lb	3 Wire Leads	720 mW	CE CSA UL VDE	12 VDC	26 dB	1900 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	30 mm	Locked Rotor Protection Speed Sensor (Tach)

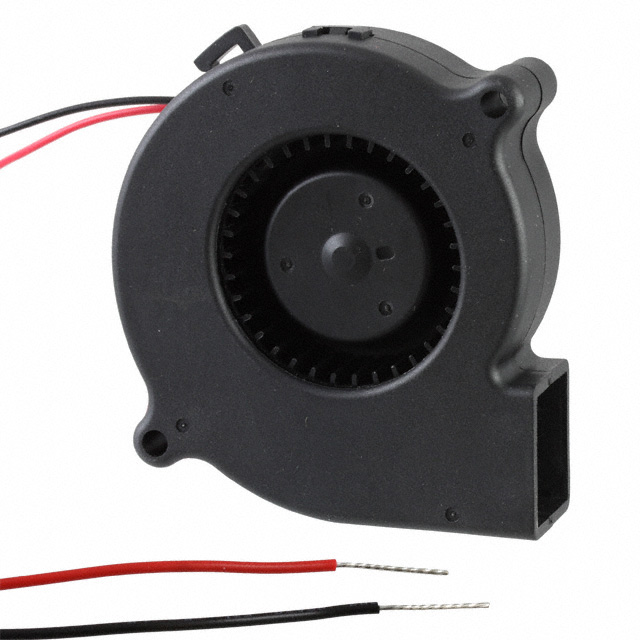

Delta Electronics BFB0712HD	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	0.31 A	8.2 CFM	0.23 mł/min	Ball	-10 °C	70 °C	257.6 Pa	1.034 in H2O	58.06 g	0.128 lb	2 Wire Leads	3.72 W	CE CSA UL VDE	12 VDC	42 dB	4000 RPM	Rectangular/Rounded	70.2 mm	76.5 mm	Blower	20 mm
Delta Electronics BFB0712HHD77	Plastic	16 V	9 V		Plastic	0.53 A	14.7 CFM	0.412 mł/min	Ball	-40 C	85 °C	351.7 Pa	1.412 in H2O	85.28 g	0.188 lb	3 Wire Leads	8.15 W		12 VDC	50 dB(A)	5500 RPM	Rectangular/Rounded	75.7 mm		Blower	25 mm	Locked Rotor Protection PWM Control	80.6 mm	IP55 - Dust Protected Water Resistant
Delta Electronics BFB0712HH-A	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	0.34 A	15.3 CFM	0.428 m³/min	Ball	-10 °C	70 °C	243.4 Pa	0.977 in H2O	90.26 g	0.199 lb	2 Wire Leads		CE CSA UL VDE	12 VDC	51 dB(A)	4400 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm

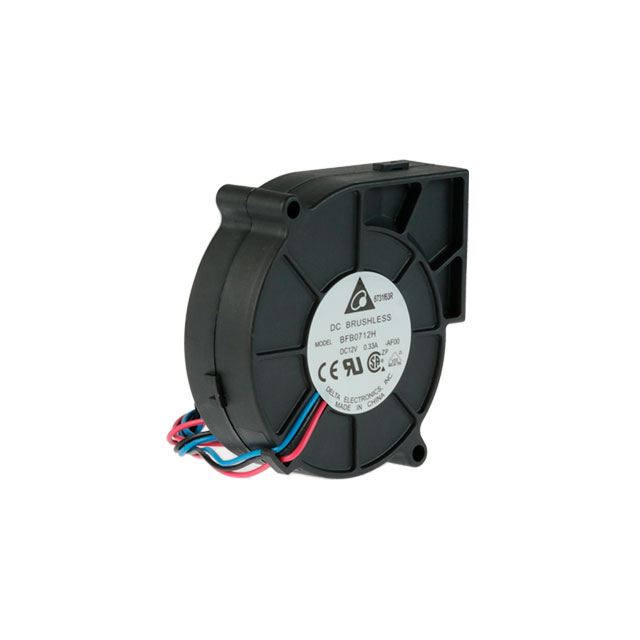

Delta Electronics BFB0712H-AF00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	270 mA	13.8 CFM	0.386 mł/min	Ball	-10 °C	70 °C	192.5 Pa	0.773 in H2O	90.26 g	0.199 lb	3 Wire Leads	3.24 W	CE CSA UL VDE	12 VDC	48 dB	4000 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712L-AF00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	100 mA	9.3 CFM	0.26 m³/min	Ball	-10 °C	70 °C	71.2 Pa	0.286 in H2O	90.26 g	0.199 lb	3 Wire Leads	1.2 W	CE CSA UL VDE	12 VDC	39 dB(A)	2800 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm	Locked Rotor Protection Speed Sensor (Tach)

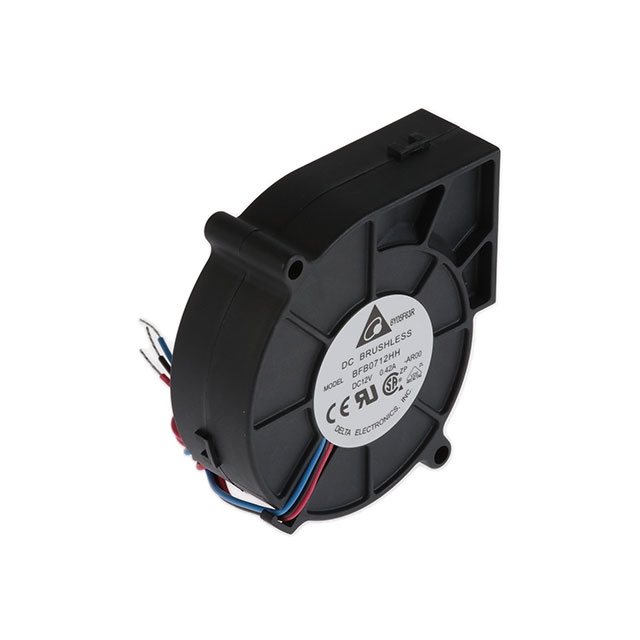

Delta Electronics BFB0712HH-AR00	Plastic	13.8 VDC	7 V	40 °C 50000 Hrs	Plastic	0.34 A	15.3 CFM	0.428 m³/min	Ball	-10 °C	70 °C	243.4 Pa	0.977 in H2O	90.26 g	0.199 lb	3 Wire Leads		CE CSA UL VDE	12 VDC	51 dB(A)	4400 RPM	Square/Rounded	75.7 mm	75.7 mm	Blower	25 mm	Locked Rotor Sensor
