174-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

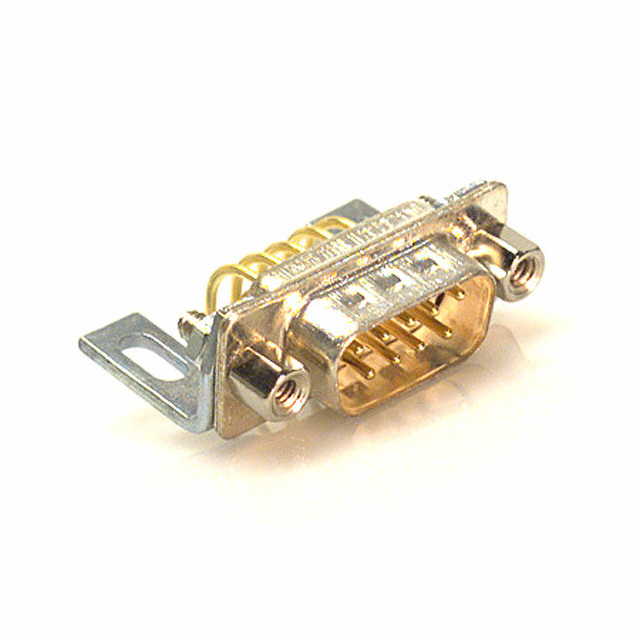

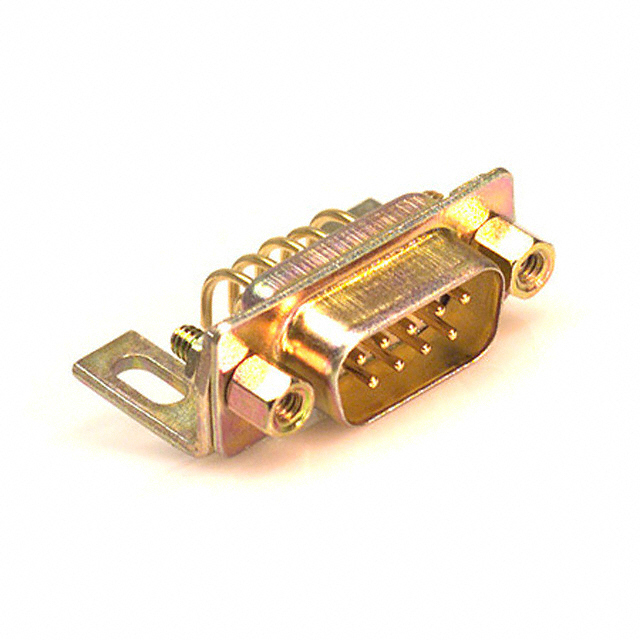

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Backset Spacing | Backset Spacing | Contact Type | Features | Number of Rows [custom] | Material Flammability Rating | Current Rating (Amps) | Termination | Number of Positions | Connector Style | Flange Feature | Connector Type | Mounting Type | Contact Finish | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 9.4 mm | 0.37 in | Signal | Mounting Brackets | 2 | UL94 V-0 | 5 A | Solder | 9 | D-Sub | 4-40 Mating Side Female Screwlock | Plug Male Pins | Panel Mount Right Angle Through Hole | Gold | Steel | Yellow Chromate Plated | Flash | 1 | DE E |
 NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 9.4 mm | 0.37 in | Signal | Grounding Indents Mounting Brackets | 2 | UL94 V-0 | 5 A | Solder | 9 | D-Sub | 4-40 Mating Side Female Screwlock | Plug Male Pins | Panel Mount Right Angle Through Hole | Gold | Flash | 1 | DE E |
