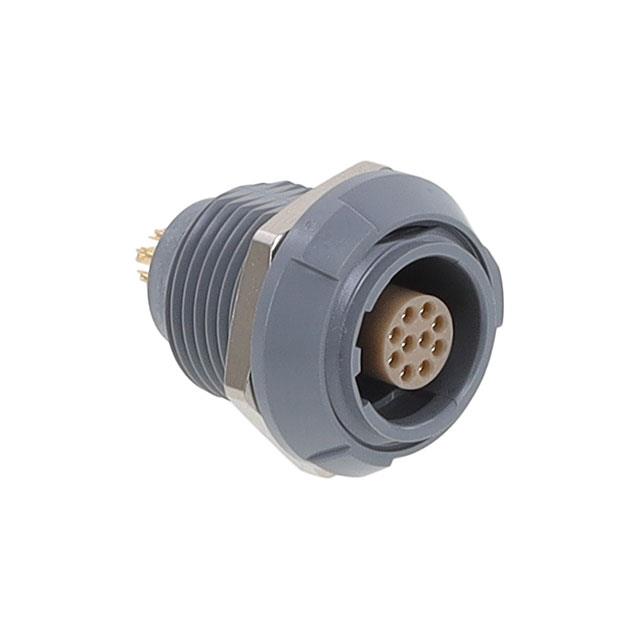

PKA.M1 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 14POS GOLD SLDR
| Part | Termination | Applications | Mounting Feature | Mounting Type | Color | Orientation | Current Rating (Amps) | Primary Material | Shielding | Fastening Type | Shell Material | Insert Material | Shell Size - Insert | Number of Positions | Ingress Protection | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Shape | Housing Color | Type | Note | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Solder | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount Through Hole | Gray | A | 2 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M14 | 14 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | |||||
LEMO | Solder | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount Through Hole | Gray Red | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | |||||
LEMO | Solder | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount Through Hole | Gray | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | |||||
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | |||||||
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount | Gray | A | 2 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M14 | 14 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | ||||||
 LEMO | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount | Gray | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | ||||||
LEMO | Bulkhead - Rear Side Nut | Panel Mount | A | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M14 | 14 | IP50 - Dust Protected | 170 °C | -50 °C | Receptacle Housing | Circular | Gray | For Female Sockets | Contacts Not Included | Solder Cup | |||||||
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount | Gray | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | ||||||
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount | A | 3 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M10 | 10 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets | |||||||

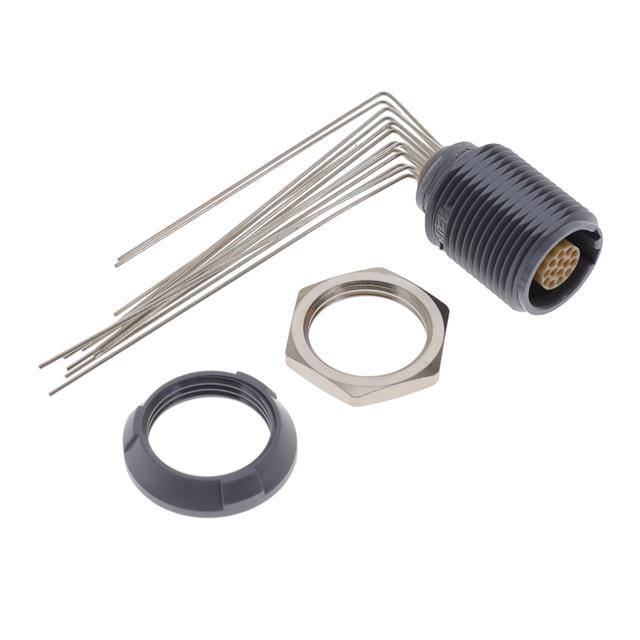

 LEMO | Solder | Automotive Industrial Medical Testing Equipment & Measurement | Front and Rear Side Nut | Panel Mount Right Angle Through Hole | Gray | A | 2 A | Plastic | Unshielded | Detent Lock Push-Pull | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | M14 | 14 | IP50 - Dust Protected | Gold | 170 °C | -50 °C | Receptacle Female Sockets |
