EEU-EB Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 10UF 20% 50V RADIAL TH

...

Part	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Lifetime @ Temp.	Package / Case	Tolerance	Polarization	Mounting Type	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

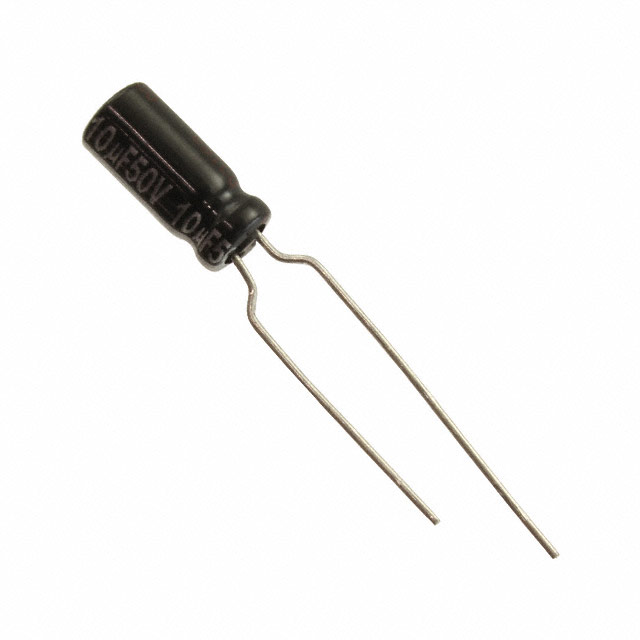

Panasonic Industrial Automation Sales EEU-EB1H100SB	44.55 mA	27 mA	12 mm	0.472 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	50 VDC	5 mm	0.197 "	5 mm	0.197 in	-40 °C	105 ░C	10 µF
Panasonic Industrial Automation Sales EEU-EB1J3R3S	33 mA	20 mA	12 mm	0.472 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	63 V	5 mm	0.197 "	2 mm	0.079 in	-40 °C	105 ░C	3.3 µF
Panasonic Industrial Automation Sales EEU-EB1J2R2B	28.6 mA	22 mA			General Purpose	7000 Hrs	Radial Can	20 %	Polar	Through Hole	63 V	5 mm	0.197 "	5 mm	0.197 in	-40 °C	105 ░C	2.2 µF	0.63 in	16 mm
Panasonic Industrial Automation Sales EEU-EB1H2R2S	27.22 mA	15 mA	12 mm	0.472 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	50 VDC	5 mm	0.197 "	2 mm	0.079 in	-40 °C	105 ░C	2.2 µF
Panasonic Industrial Automation Sales EEU-EB1J2R2SB	27.2 mA	16.5 mA	12 mm	0.472 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	63 V	5 mm	0.197 "	5 mm	0.197 in	-40 °C	105 ░C	2.2 µF

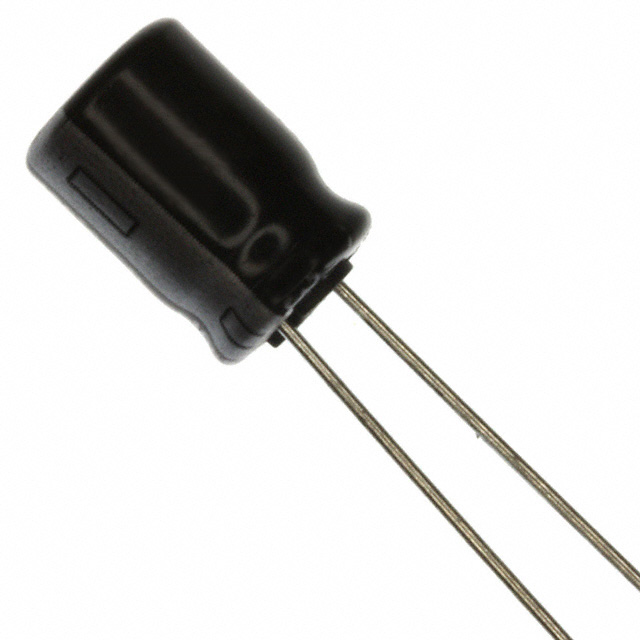

Panasonic Industrial Automation Sales EEU-EB1J470B	122.2 mA	94 mA			General Purpose	10000 Hrs	Radial Can	20 %	Polar	Through Hole	63 V	8 mm	0.315 "	5 mm	0.197 in	-40 °C	105 ░C	47 µF	0.63 in	16 mm
Panasonic Industrial Automation Sales EEU-EB1J221	379.6 mA	292 mA	22 mm	0.866 in	General Purpose	10000 Hrs	Radial Can	20 %	Polar	Through Hole	63 V	10 mm	0.394 in	5 mm	0.197 in	-40 °C	105 ░C	220 µF
Panasonic Industrial Automation Sales EEU-EB1A471SB	234 mA	180 mA			General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	10 V	8 mm	0.315 "	5 mm	0.197 in	-40 °C	105 ░C	470 µF	0.492 in	12.5 mm
Panasonic Industrial Automation Sales EEU-EB1H3R3S	29.7 mA	18 mA	12 mm	0.472 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	50 VDC	5 mm	0.197 "	2 mm	0.079 in	-40 °C	105 ░C	3.3 µF

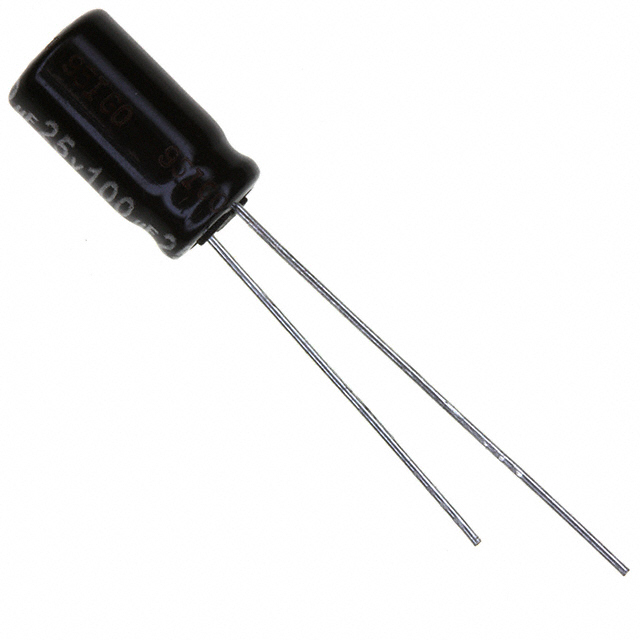

Panasonic Industrial Automation Sales EEU-EB1E101SH	123.5 mA	95 mA	12.2 mm	0.48 "	General Purpose	5000 Hrs	Radial Can	20 %	Polar	Through Hole	25 VDC	6.3 mm	0.248 in	2.5 mm	0.098 in	-40 °C	105 ░C	100 µF
