86000 Series Series

Microminiature Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature Pushbutton Switches

Part	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Actuator Type	Mounting Type	Termination Style	Current Rating (Amps)	Type	Voltage Rating - AC	Electrical Life	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Features
Littelfuse/Commercial Vehicle Products 8632CQD2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	PC Pin	500 mA	Standard	120 V	100000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8631CBD2	20 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	PC Pin	0.4 VA	Standard	20 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8632ZGD2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	Solder Lug	500 mA	Standard	120 V	100000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8631ZQD3	28 V	4.37 mm	Red	Plunger for Cap	Panel Mount Rear	Solder Lug	500 mA	Standard	120 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8631CGD2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	PC Pin	500 mA	Standard	120 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom

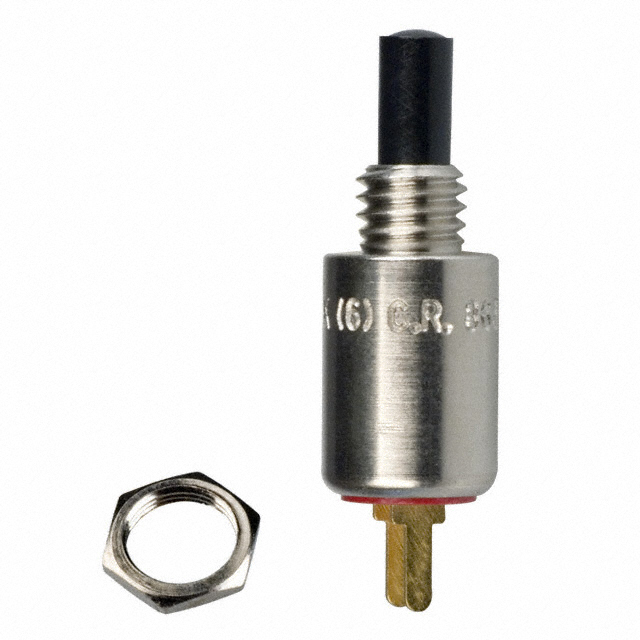

Littelfuse/Commercial Vehicle Products 8632CBD2	20 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	PC Pin	0.4 VA	Standard	20 V	100000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8631ZQD2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	Solder Lug	500 mA	Standard	120 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom

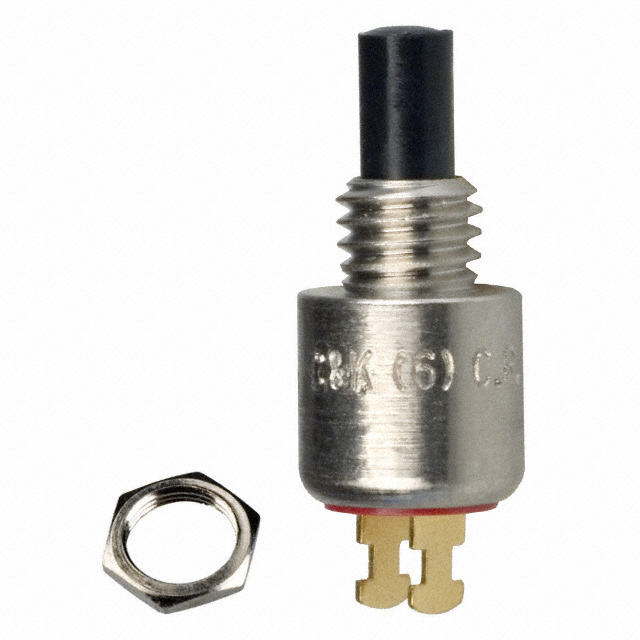

Littelfuse/Commercial Vehicle Products 8631ZBD2	20 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	Solder Lug	0.4 VA	Standard	20 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom
Littelfuse/Commercial Vehicle Products 8633ZGE2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	Solder Lug	250 mA	Standard	120 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NC	On-Mom	Epoxy Sealed Terminals
Littelfuse/Commercial Vehicle Products 8631CQD2	28 V	4.37 mm	Black	Plunger for Cap	Panel Mount Rear	PC Pin	500 mA	Standard	120 V	250000 Cycles	No Marking	65 °C	-30 ░C	SPST-NO	Off-Mom

Catalog

Microminiature Pushbutton Switches

Key Features

• Microminiature size ideal for applications where space is limited

• Normally closed models available

• Available with overtravel

Description

C&K’s 8600 series microminiature pushbutton switches are the perfect size for applications where space is limited. Commonly used in the networking, detection and telecommunications industry, the 8600 switches are available in closed models with optional overtravel.
