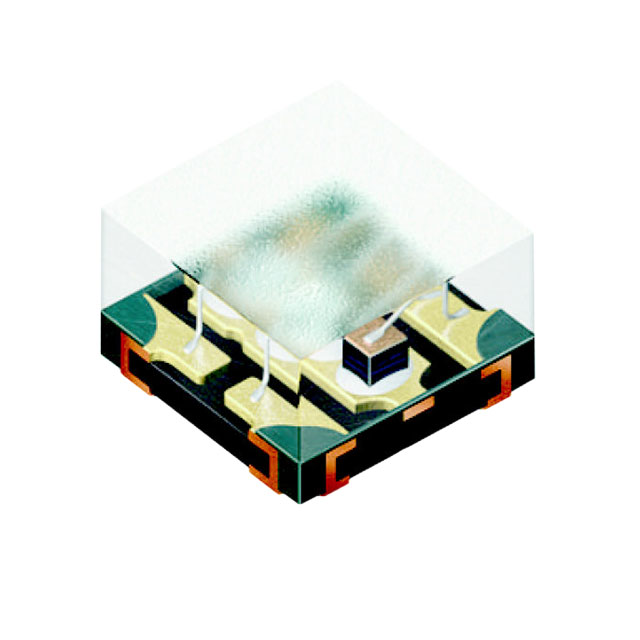

LRTBR48 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

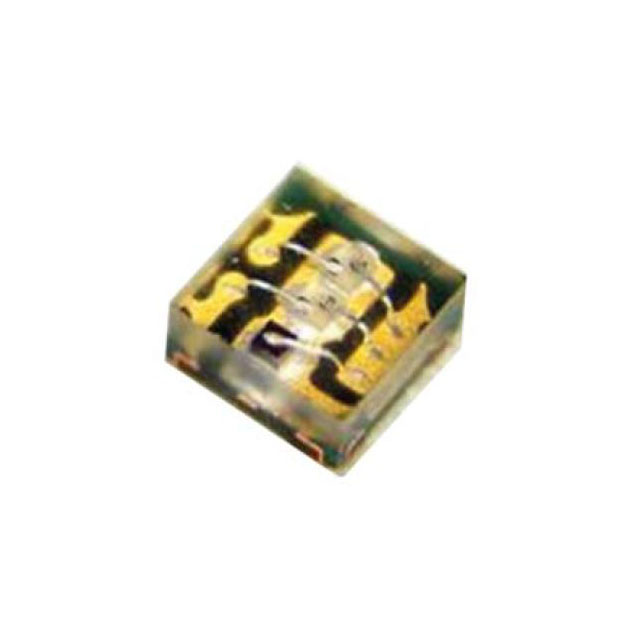

LED RGB 4SMD
| Part | Mounting Type | Package / Case | Supplier Device Package | Height (Max) [z] | Size / Dimension [x] | Size / Dimension [y] | Viewing Angle | Color | Wavelength - Dominant | Lens Color | Wavelength - Peak | Lens Transparency | Voltage - Forward (Vf) (Typ) | Lens Size | Configuration | Lens Style | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | Surface Mount | 0404 (1010 Metric) | 4-SMD | 1 mm | 1 mm | 1 mm | 120 ° | Blue Green Red | ||||||||||||||
 ams-OSRAM USA INC. | Surface Mount | 0404 (1010 Metric) | 4-SMD | 1 mm | 1 mm | 120 ° | Blue Green Red | 471 nm 530 nm 623 nm | Colorless | 455nm Blue 523nm Green 632nm Red | Clear | 1.95 V 2.7 V 2.7 V | 1.13 mm | Common Anode | Square with Flat Top | 51 mcd | 102 mcd | 228 mcd | 10 mA | 5 mA | 5 mA | |
 ams-OSRAM USA INC. | Surface Mount | 0404 (1010 Metric) | 4-SMD | 1 mm | 1 mm | 120 ° | Blue Green Red | 471 nm 530 nm 623 nm | 455nm Blue 523nm Green 632nm Red | 1.95 V 2.7 V 2.7 V | 1 mm | Common Anode | Square with Flat Top | 10 mA | 5 mA | 5 mA |
