SFW27R Series

Catalog

CONN FPC BOTTOM 27POS 1MM R/A

Part	Actuator Color	Housing Color	Contact Finish	FFC, FCB Thickness	Number of Positions	Housing Material	Locking Feature	Actuator Material	Height Above Board [z]	Height Above Board [z]	Termination	Contact Material	Flat Flex Type	Connector/Contact Type	Pitch	Pitch	Cable End Type	Mounting Type	Material Flammability Rating	Mating Cycles	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW27R-3STAE5LF	Brown	Black	Gold	0.33 mm	27	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	Solder	Phosphor Bronze	FPC	Contacts Bottom	1 mm	0.039 in	Tabbed	Right Angle Surface Mount	UL94 V-0

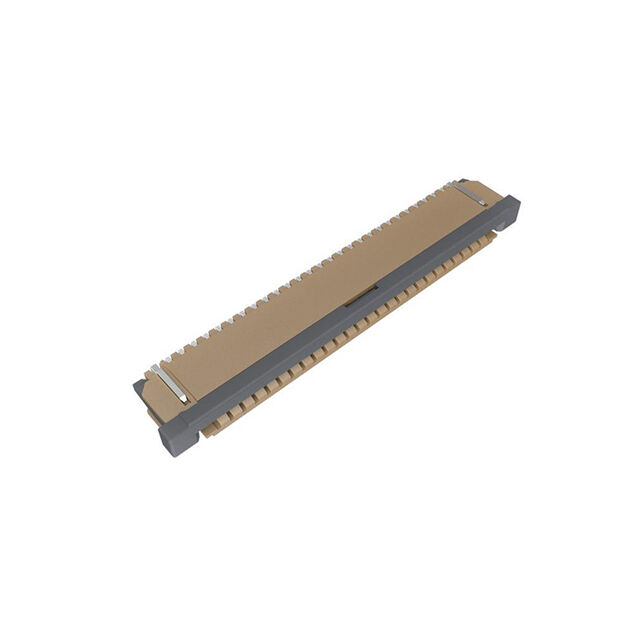

Amphenol ICC (FCI) SFW27R-1STE1LF		Brown	Tin	0.3 mm	27	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	Kinked Pin	Phosphor Bronze	FFC FPC	Contacts Bottom	1 mm	0.039 in	Straight or Tapered	Right Angle Surface Mount	UL94 V-0	20	100 V	-55 C	105 ░C
Amphenol ICC (FCI) SFW27R-4STE1LF	Brown	Black	Tin		27	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	Solder	Phosphor Bronze	FFC FPC	Contacts Top	1 mm	0.039 in	Notched Tapered	Right Angle Surface Mount	UL94 V-0	20	100 V	-55 C	105 ░C	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW27R-5STE1				0.3 mm	27	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock		0.106 in	2.7 mm	Solder		CIC	Contacts Bottom	1 mm	0.039 in	Tapered	Right Angle Surface Mount
Amphenol ICC (FCI) SFW27R-4STAE1LF
Amphenol ICC (FCI) SFW27R-1STE9LF	Black	Brown	Tin		27	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	Solder	Phosphor Bronze	FFC FPC	Contacts Bottom	1 mm	0.039 in	Straight Tapered	Right Angle Surface Mount	UL94 V-0	20	100 V	-55 C	105 ░C	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW27R-5STE1LF		Brown	Tin	0.3 mm	27	Polyphenylene Sulfide (PPS) Glass Filled		Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	Kinked Pin	Phosphor Bronze	CIC	Contacts Bottom	1 mm	0.039 in	Straight or Tapered	Right Angle Surface Mount	UL94 V-0	10	100 V	-55 C	105 ░C
