HLMP-C115 Series
Manufacturer: Broadcom Limited
Beta
⌘K

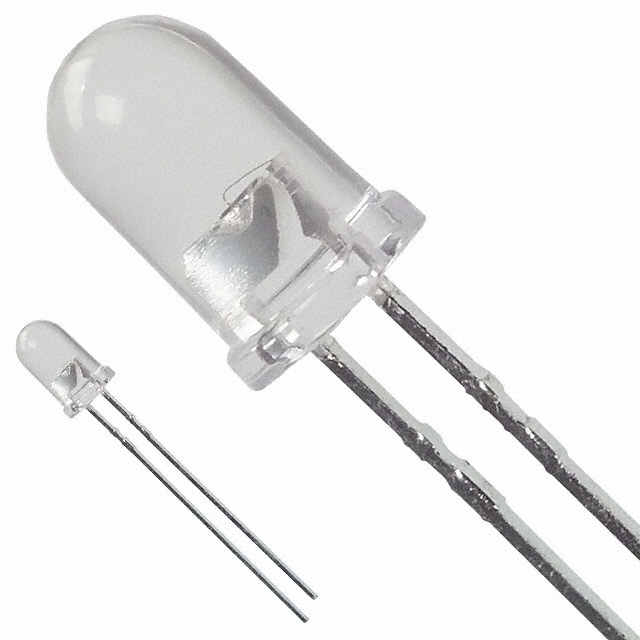

LED RED CLEAR T-1 3/4 T/H
| Part | Package / Case | Supplier Device Package | Color | Lens Style | Lens Color | Current - Test | Wavelength - Peak | Viewing Angle | Voltage - Forward (Vf) (Typ) | Lens Size | Lens Size | Lens Transparency | Millicandela Rating | Wavelength - Dominant | Mounting Type | Configuration | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Radial | T-1 3/4 | Red | Round with Domed Top | Red | 20 mA | 660 nm | 15 ° | 1.8 V | T-1 3/4 | 5 mm | Clear | 600 mcd | 640 nm | Through Hole | Standard | 8.91 mm |
