HSDNBSPP Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

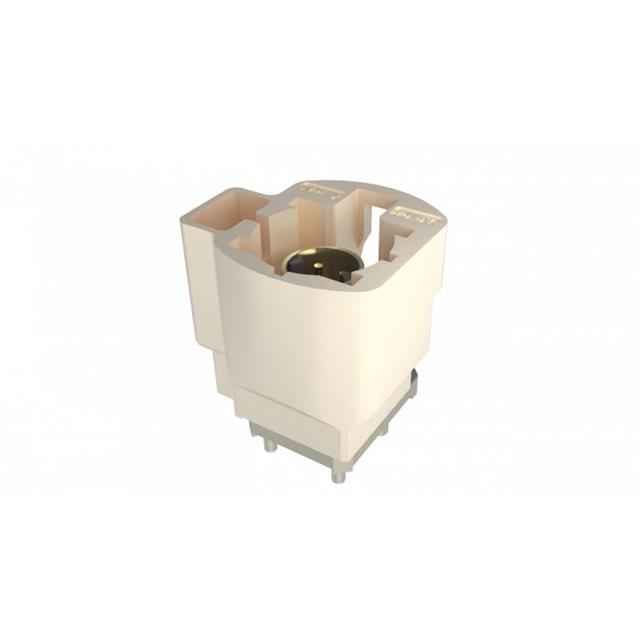

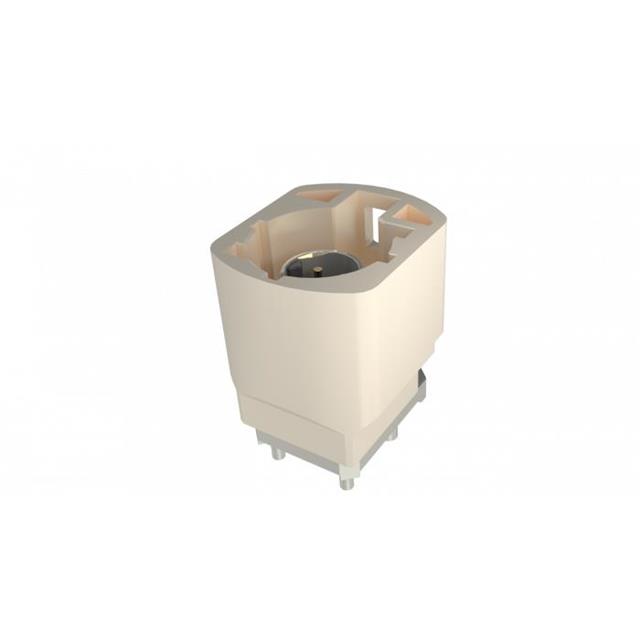

HSD 4+0 ST. T/H CODE B
| Part | Center Contact Plating | Body Material | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Ports | Center Contact Material | Features | Contact Termination | Connector Type | Fastening Type | Shield Termination | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Gold | Zinc Alloy | Thermoplastic | Tin | -40 C | 105 ░C | Through Hole | 1 | Copper Alloy | Code B | Solder | Plug Male Pin | Latch Lock | Solder | Fakra HSD® Quadraxial | Cream |
 Amphenol ICC (Commercial Products) | Gold | Zinc Alloy | Liquid Crystal Polymer (LCP) Glass Filled | Tin | Through Hole | 1 | Brass | Code B | Solder | Plug Male Pin | Latch Lock | Solder | Fakra HSD® Quadraxial | Cream | ||
 Amphenol ICC (Commercial Products) | Gold | Zinc Alloy | Thermoplastic | Tin | Through Hole | 1 | Copper Alloy | Code B | Solder | Plug Male Pin | Latch Lock | Solder | Fakra HSD® Quadraxial | White |
