160404 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RECTANGULAR POWER CONTACT, POWER 175 SERIES, SILVER PLATED CONTACTS, COPPER, PIN, SOCKET, CRIMP
| Part | Contact Termination | Contact Finish | Contact Type | Contact Material | Type | Wire Gauge | Length - Termination [x] | Length - Termination [x] | Material - Insulation | Length - Pin | Length - Pin | Features | Insulation | Termination | Pin Diameter [diameter] | Pin Diameter [diameter] | Color | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

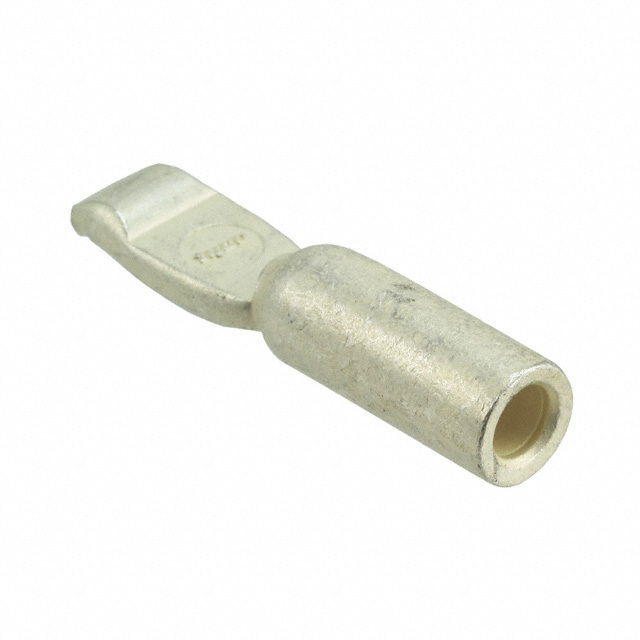

 TE Connectivity AMP Connectors | Crimp | Silver | Non-Gendered | Copper Alloy | Machined | 4 AWG | |||||||||||||||||

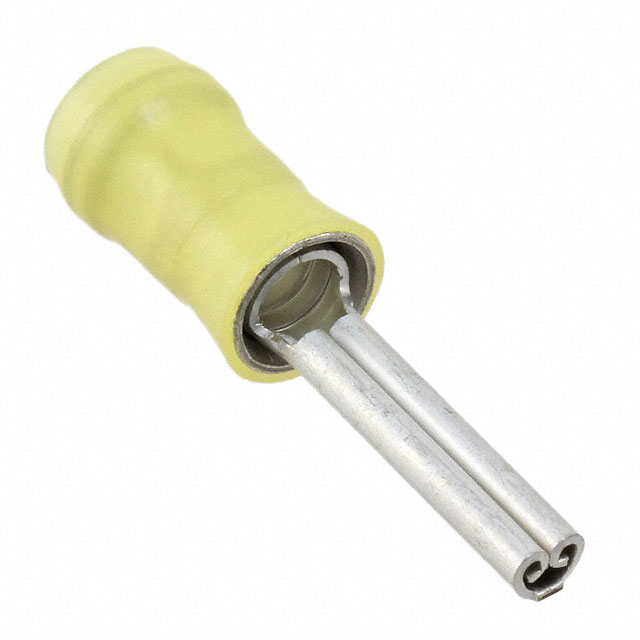

 TE Connectivity AMP Connectors | Tin | Copper | 18.3 mm | 0.72 in | Poly-Vinyl Chloride (PVC) | 15.19 mm | 0.598 in | Serrated Termination | Insulated | Crimp | 0.11 in | 2.79 mm | Yellow | 6 mm² 10 AWG | 4 mm² 12 AWG | 0.248 " | 6.3 mm | 33.5 mm | 1.319 in |
