0677-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Contact Finish

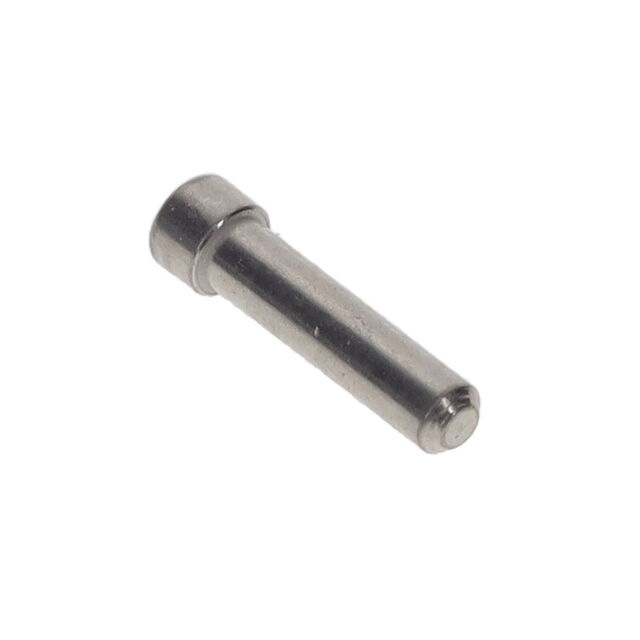

Mill-Max Manufacturing Corp. 0677-0-15-80-30-84-10-0	-55 C	125 °C	No Tail	1.3 mm	0.051 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.6 mm	0.063 in	0.248 in	6.3 mm	5.21 mm	0.205 in	2.54 µm	100 µin	Beryllium Copper	Solder	Tin

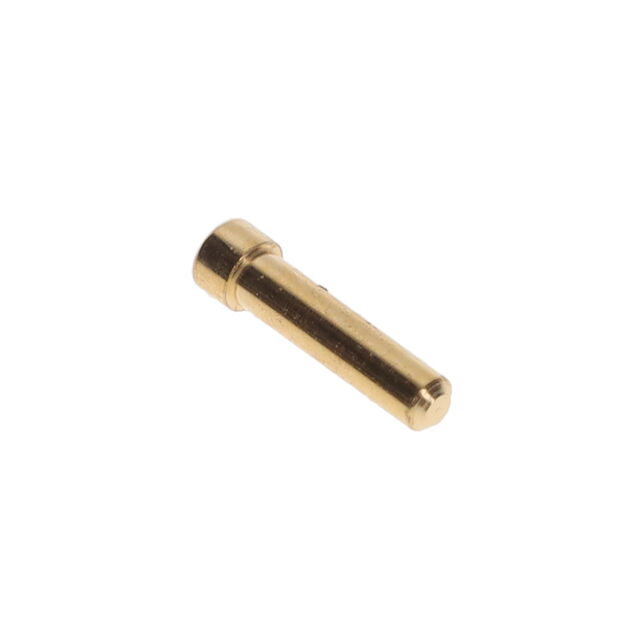

Mill-Max Manufacturing Corp. 0677-0-15-15-30-14-10-0	-55 C	125 °C	No Tail	1.3 mm	0.051 in	0.64 mm	0.015 "	0.025 in	0.38 mm	1.6 mm	0.063 in	0.248 in	6.3 mm	5.21 mm	0.205 in	0.25 Ám	10 Áin	Beryllium Copper	Solder	Gold
