UB25NKW Series

Catalog

SWITCH PUSHBUTTON DPDT 5A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Termination Style	Actuator Type	Type	Actuator Marking	Current Rating (Amps)	Illumination Type, Color	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Circuit	Voltage Rating - DC	Switch Function	Illumination Voltage (Nominal)	Features
NKK Switches UB25NKW015F-FF	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Button Rectangular	Illuminated Standard	No Marking	5 A	Green LED	Green	50 °C	-25 °C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom	2.1 VDC	Spot LED
NKK Switches UB25NKW015D	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Plunger for Cap	Illuminated Standard	No Marking	5 A	Amber LED		50 °C	-25 °C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom	2 VDC	Spot LED
NKK Switches UB25NKW015C-CC	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Button Rectangular	Illuminated Standard	No Marking	5 A	LED Red	Red	50 °C	-25 °C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom	1.85 VDC	Spot LED
NKK Switches UB25NKW015C	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Plunger for Cap	Illuminated Standard	No Marking	5 A	LED Red		50 °C	-25 °C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom	1.85 VDC	Spot LED

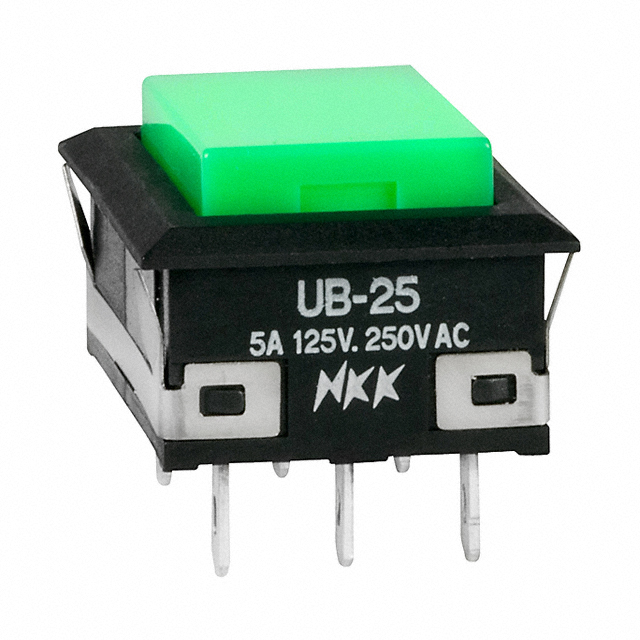

NKK Switches UB25NKW01N-F	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Button Rectangular	Standard	No Marking	5 A		Green	70 °C	-20 ░C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom		Spot LED
NKK Switches UB25NKW015C-JC	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Button Rectangular	Illuminated Standard	No Marking	5 A	LED Red	Clear	50 °C	-25 °C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom	1.85 VDC	Spot LED
NKK Switches UB25NKW01N	1000000 Cycles	10000 Cycles	125 V	Solder Lug	Plunger for Cap	Standard	No Marking	5 A			70 °C	-20 ░C	16.2 mm	22.4 mm	Panel Mount Snap-In	DPDT	30 V	On-Mom		Spot LED
