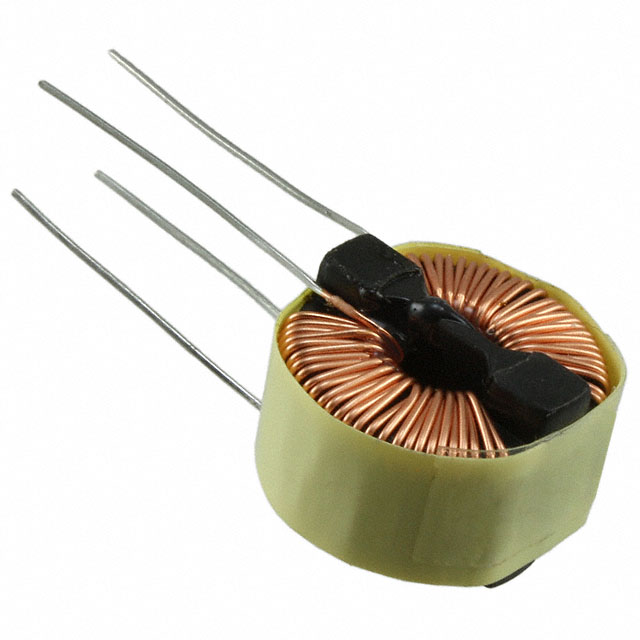

7105 Series
Manufacturer: Bourns Inc.
Beta
⌘K
CMC 4.25MH 1A 2LN TH
| Part | Package / Case | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Inductance @ Frequency | Number of Lines | Height (Max) [Max] [diameter] | Height (Max) [Max] [diameter] | Mounting Type | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Vertical No Base 4 PC Pin | 1 A | 125 mOhm | -55 C | 105 ░C | 4.25 mH | 2 | 17.78 mm | 0.7 in | Through Hole | 0.7 in | 13.97 mm | 0.55 in | 17.78 mm |
