PPPC141 Series

Catalog

CONN HDR 14POS 0.1 GOLD PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Type	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Mounting Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]

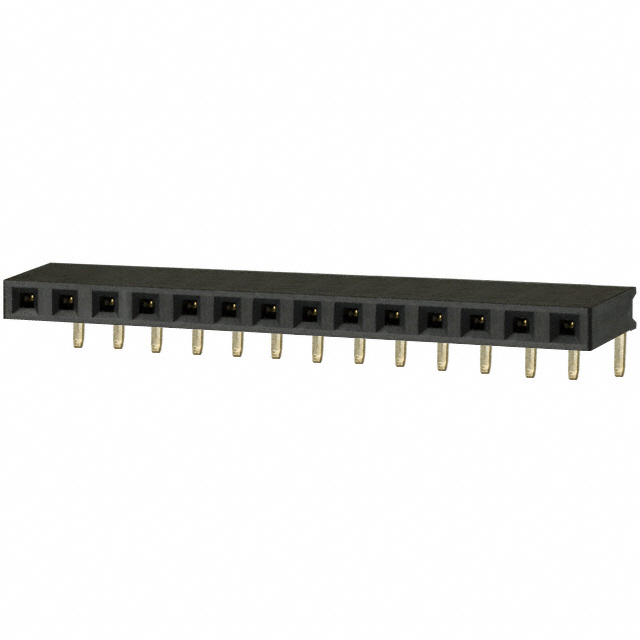

Sullins Connector Solutions PPPC141LGBN-RC	Phosphor Bronze	Polyester	Square	Flash	0.1 "	2.54 mm	14	0.124 in	3.15 mm	Solder	3 A	Black	-40 C	105 ░C	UL94 V-0	Header	0.1 in	2.54 mm	All	Female Socket	1	Gold	Flash	250 V	Gold	Right Angle Through Hole	Push-Pull

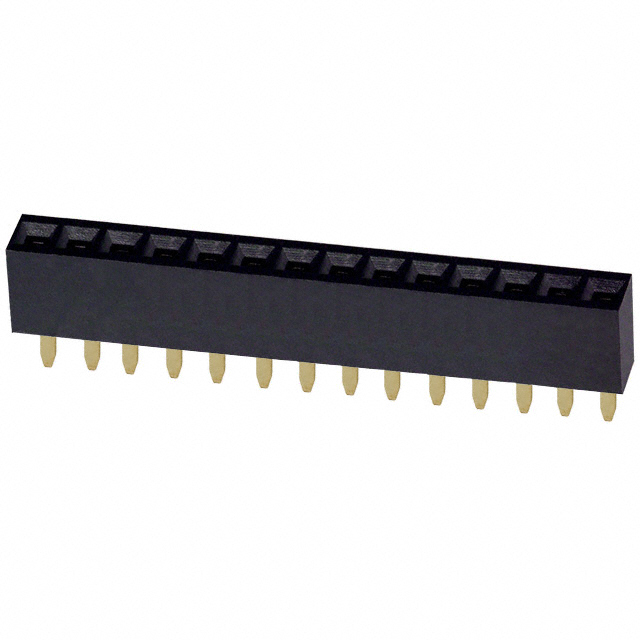

Sullins Connector Solutions PPPC141LFBN	Phosphor Bronze	Polyester	Square	Flash	0.1 "	2.54 mm	14			Solder	3 A	Black	-40 C	105 ░C	UL94 V-0	Header	0.335 "	8.51 mm	All	Female Socket	1	Gold	Flash	250 V	Gold	Through Hole	Push-Pull	0.126 "	3.2 mm
Sullins Connector Solutions PPPC141LFBN-RC	Phosphor Bronze	Polyester	Square	Flash	0.1 "	2.54 mm	14			Solder	3 A	Black	-40 C	105 ░C	UL94 V-0	Header	0.335 "	8.51 mm	All	Female Socket	1	Gold	Flash	250 V	Gold	Through Hole	Push-Pull	0.126 "	3.2 mm
