MAN66 Series

Catalog

DISP 7SEG 0.56" 1.5DIG ORG 18DIP

Part	Number of Characters	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ) [Max]	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Display Type	Current - Test
ON Semiconductor MAN6650	1.5	15.24 mm	0.6 in	18-DIP	1.05 W	2.5 V	630 nm	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	2.2 mcd	0.56 in	14.22 mm	Common Cathode	7-Segment	20 mA
ON Semiconductor MAN6630	1.5	15.24 mm	0.6 in	18-DIP	1.05 W	2.5 V	630 nm	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	2.2 mcd	0.56 in	14.22 mm	Common Anode	7-Segment	20 mA

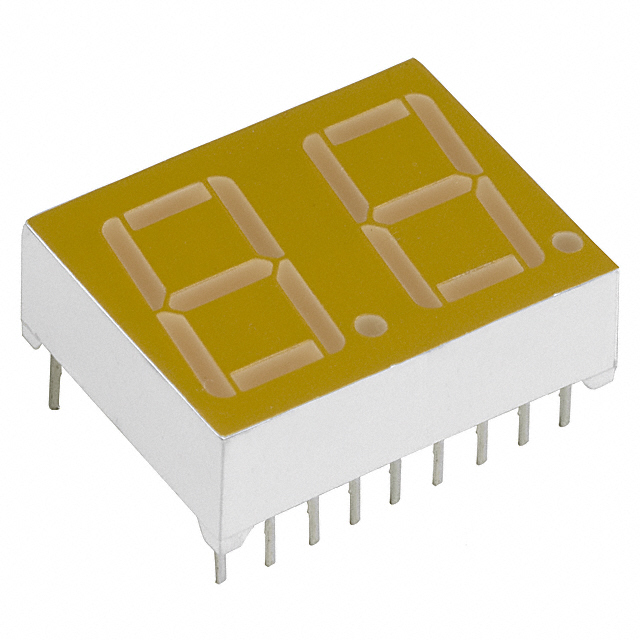

ON Semiconductor MAN6610	2	15.24 mm	0.6 in	18-DIP	1.2 W	2.5 V	630 nm	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	2.2 mcd	0.56 in	14.22 mm	Common Anode	7-Segment	20 mA
ON Semiconductor MAN6640	2	15.24 mm	0.6 in	18-DIP	1.2 W	2.5 V	630 nm	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	2.2 mcd	0.56 in	14.22 mm	Common Cathode	7-Segment	20 mA
