ITRA Series

Catalog

ITRA PULSE TRANSFORMER THT 0.1A

Part	Weight [diameter]	Weight [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Transformer Type	Turns Ratio - Primary:Secondary	Mounting Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight [custom]	Weight [custom]
SCHURTER Inc. ITRA-0249-D104	0.32 oz	9.12 g	100 °C	-25 °C	18.2 mm	0.717 in	17.8 mm	0.701 in	Isolation and Data Interface (Encapsulated)	1:1	Through Hole	3.5 mH	0.512 "	13 mm

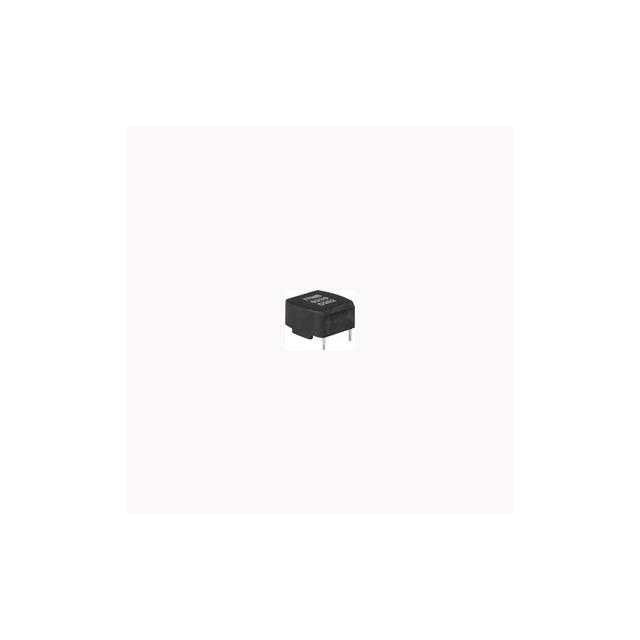

SCHURTER Inc. ITRA-0235-D103			100 °C	-25 °C	15.2 mm	0.598 in	13 mm	0.512 "	Isolation and Data Interface (Encapsulated)	1:1	Through Hole	2.8 mH	0.417 in	10.6 mm	0.28 oz	7.98 g
