725-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 31POS 0.100

Part	Termination Rows	Material - Insulation	Read Out	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Gender	Contact Finish	Contact Material	Number of Positions [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions/Bay/Row [custom]	Contact Type	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type

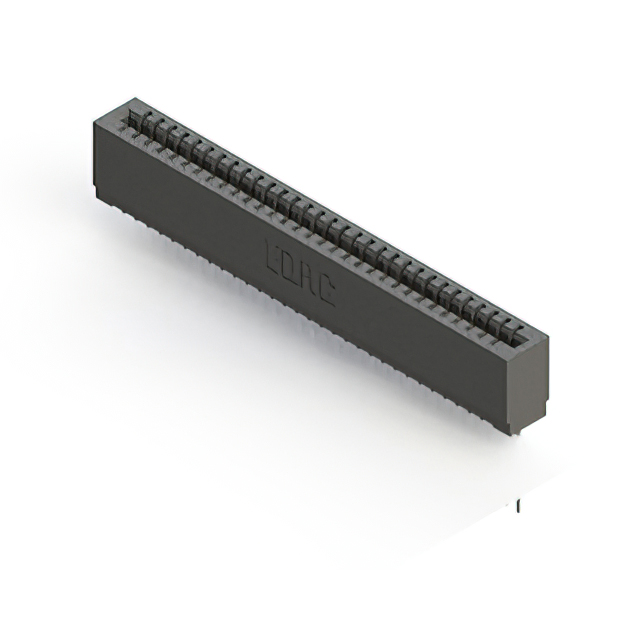

EDAC Inc. 725-031-541-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
EDAC Inc. 725-031-520-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
EDAC Inc. 725-031-522-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
EDAC Inc. 725-031-540-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
EDAC Inc. 725-031-525-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
EDAC Inc. 725-031-545-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	0.1 "	2.54 mm	Female	Gold	Copper Alloy	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	31	Cantilever	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	Through Hole
