SVL2041 Series
Manufacturer: SolaHD
Beta
⌘K

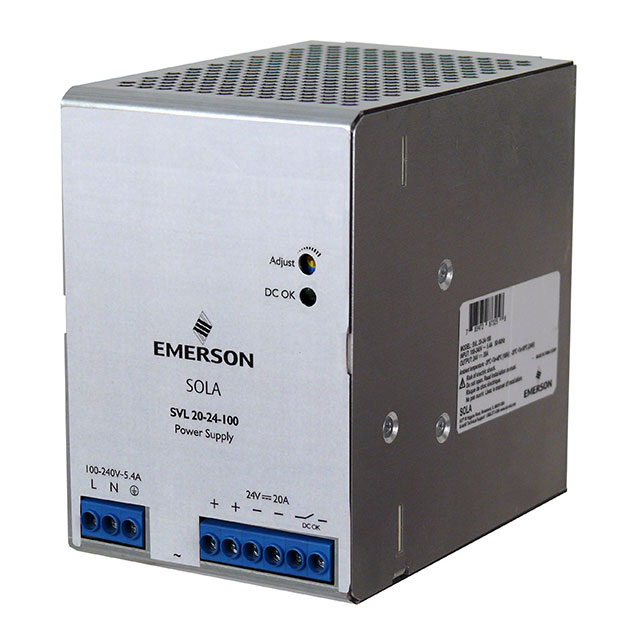

AC/DC DIN RAIL SUPPLY 24V 480W
| Part | Features | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Applications | Voltage - Output 1 | Approval Agency | DC Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Number of Outputs | DC Voltage - Input (Min) [Min] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SolaHD | Universal Input | 88 % | 85.6 mm | 5.06 " | 3.37 in | 123.7 mm | 4.87 " | 128.5 mm | Industrial ITE (Commercial) | 24 V | CE cULus cURus | 375 V | 20 A | 480 W | 70 °C | -20 °C | 3000 V | 1 | 120 V | 264 VAC | 85 VAC | AC or DC |
