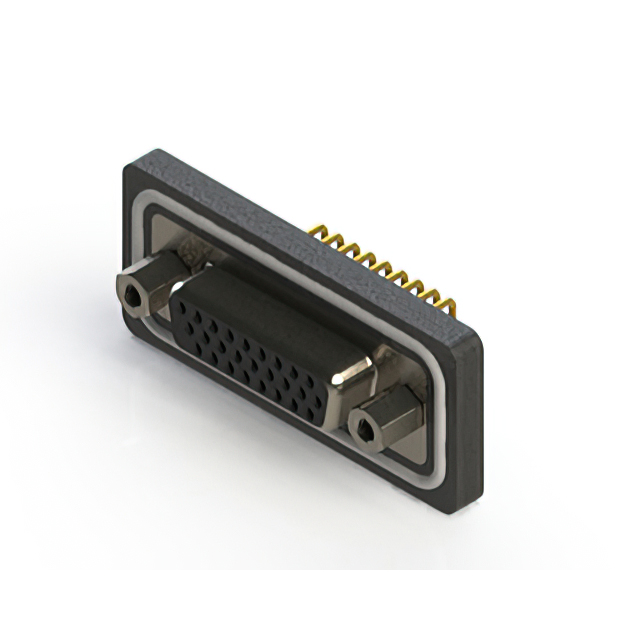

634-W26 Series
Manufacturer: EDAC Inc.
Beta
⌘K
634W (WATERPROOF) SERIES RIGHT A
| Part | Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination | Ingress Protection | Contact Finish Thickness | Contact Finish | Connector Type | Contact Type | Shell Material, Finish | Current Rating (Amps) | Connector Style | Number of Positions | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows [custom] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | Solder | IP67 - Dust Tight Waterproof | Flash | Gold | Receptacle Female Sockets | Signal | Nickel Plated Steel | 3 A | D-Sub High Density | 26 | UL94 V-0 | Right Angle Through Hole | 2 | DA A | 3 | 4-40 Mating Side Female Screwlock | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Black | Solder | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Signal | Nickel Plated Steel | 3 A | D-Sub High Density | 26 | UL94 V-0 | Right Angle Through Hole | 2 | DA A | 3 | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám |
