MC8038 Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Voltage - Rated	Width [y]	Features	Noise	Bearing Type	Approval Agency	RPM	Termination	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Air Flow	Air Flow	Weight	Weight
Mechatronics Fan Group MC8038L24B-FSR	140 mA	Polybutylene Terephthalate (PBT)	24 VDC	38 mm	Thermal Overload Protector (TOP)	39 dB(A)	Ball	cUL TUV UL	3400 RPM	2 Wire Leads	Tubeaxial	80 mm	80 mm	0.28 in H2O	69.7 Pa	1.27 m³/min	45.5 CFM	180.08 g	0.397 lb

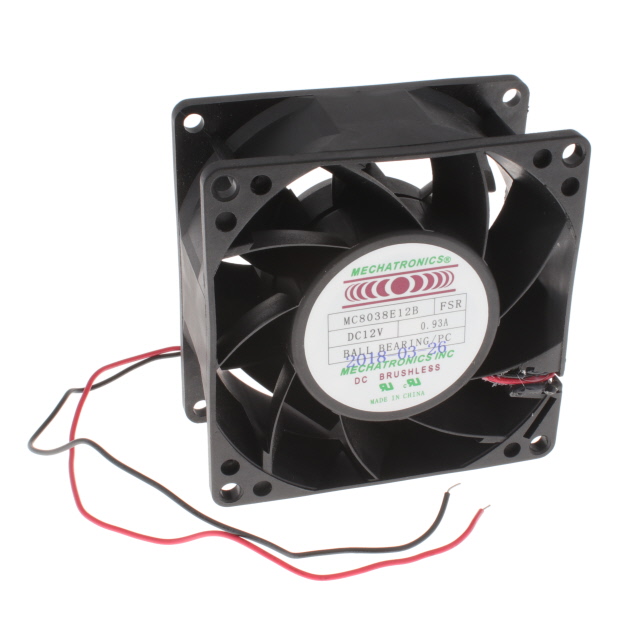

Mechatronics Fan Group MC8038E12B-FSR-PC	930 mA	Polybutylene Terephthalate (PBT)	12 VDC	38 mm	Parylene Coating Thermal Overload Protector (TOP)	52.1 dB(A)	Ball	CE cUL TUV UL	5800 RPM	2 Wire Leads	Tubeaxial	80 mm	80 mm	0.84 in H2O	209.2 Pa	2.28 m³/min	81.5 CFM	180.08 g	0.397 lb

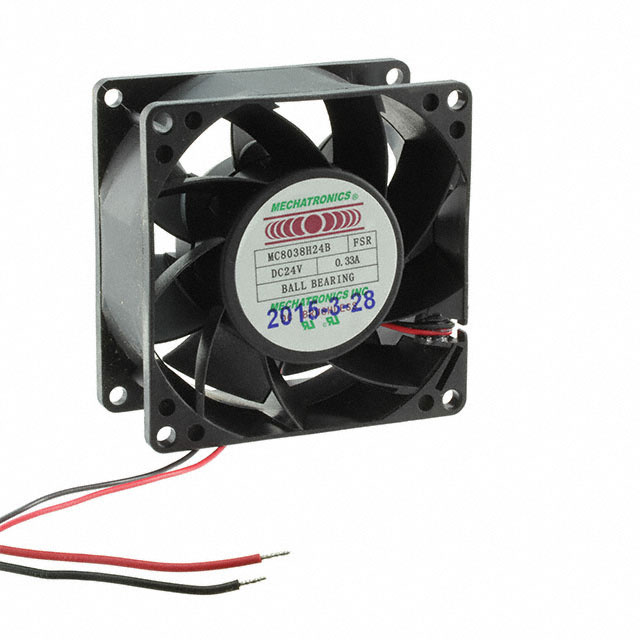

Mechatronics Fan Group MC8038H24B-FSR	0.33 A	Polybutylene Terephthalate (PBT)	24 VDC	38 mm	Thermal Overload Protector (TOP)	48.2 dB(A)	Ball	cUL TUV UL	5000 RPM	2 Wire Leads	Tubeaxial	80 mm	80 mm			1.96 m³/min	69.9 CFM	180.08 g	0.397 lb

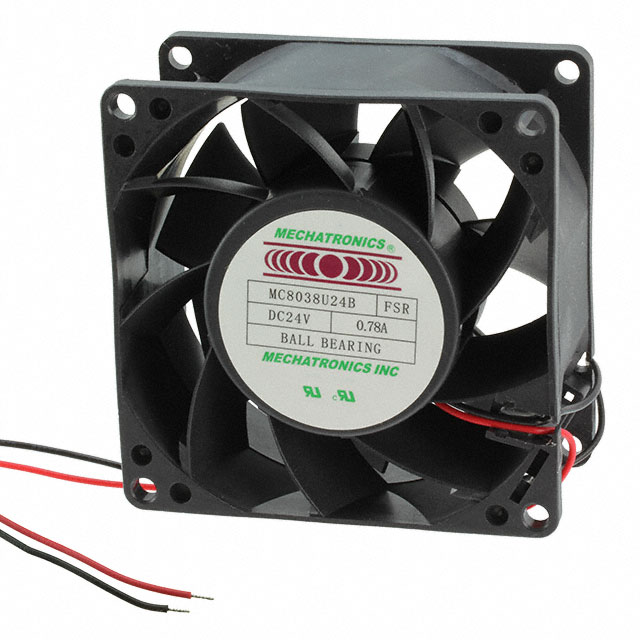

Mechatronics Fan Group MC8038U24B-FSR	0.89 A	Polybutylene Terephthalate (PBT)	24 VDC	38 mm	Thermal Overload Protector (TOP)	60.2 dB(A)	Ball	cUL TUV UL	6800 RPM	2 Wire Leads	Tubeaxial	80 mm	80 mm	1.15 in H2O	286.5 Pa	2.68 m³/min	95.6 CFM	180.08 g	0.397 lb
Mechatronics Fan Group MC8038U12B2-FSR	1.5 A	Polybutylene Terephthalate (PBT)	12 VDC	38 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	60.2 dB(A)	Ball	cUL TUV UL	6800 RPM	3 Wire Leads	Tubeaxial	80 mm	80 mm	1.15 in H2O	286.5 Pa	2.68 m³/min	95.6 CFM	180.08 g	0.397 lb
Mechatronics Fan Group MC8038H48B-FSR	190 mA	Polybutylene Terephthalate (PBT)	48 VDC	38 mm	Thermal Overload Protector (TOP)	48.2 dB(A)	Ball	cUL TUV UL	5000 RPM	2 Wire Leads	Tubeaxial	80 mm	80 mm			1.96 m³/min	69.9 CFM	180.08 g	0.397 lb
