G5RL-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

GENERAL PURPOSE RELAY, G5RL SERIES, POWER, NON LATCHING, SPST-NO, 12 VDC, 16 A ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Load - Max Switching	Coil Resistance	Termination Style	Must Release Voltage	Contact Rating (Current)	Coil Voltage	Must Operate Voltage	Approval Agency	Coil Current	Contact Form	Switching Voltage	Seal Rating	Mounting Type	Relay Type	Contact Material	Operate Time	Release Time

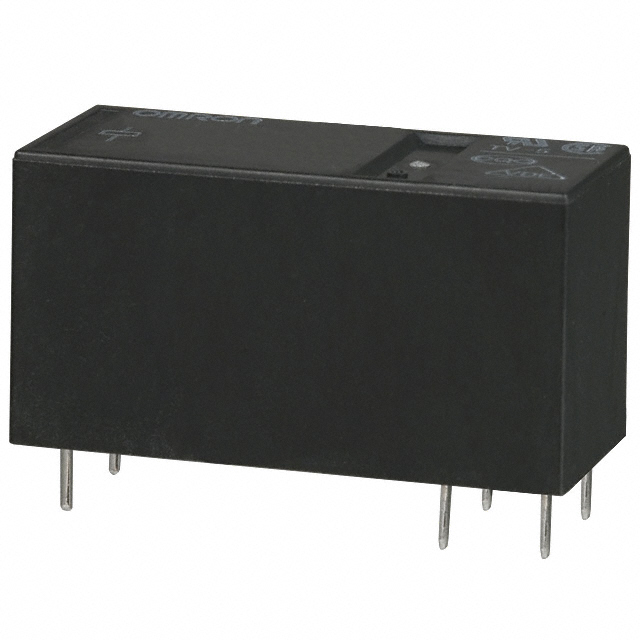

Omron Electronics Inc-EMC Div G5RL-1A-E-HR DC12	85 °C	-40 °C	Non Latching	384 W 4000 VA	360 Ohms	PC Pin	1.2 VDC	16 A	12 VDC	8.4 VDC	CQC CSA cURus UR VDE	33.3 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms

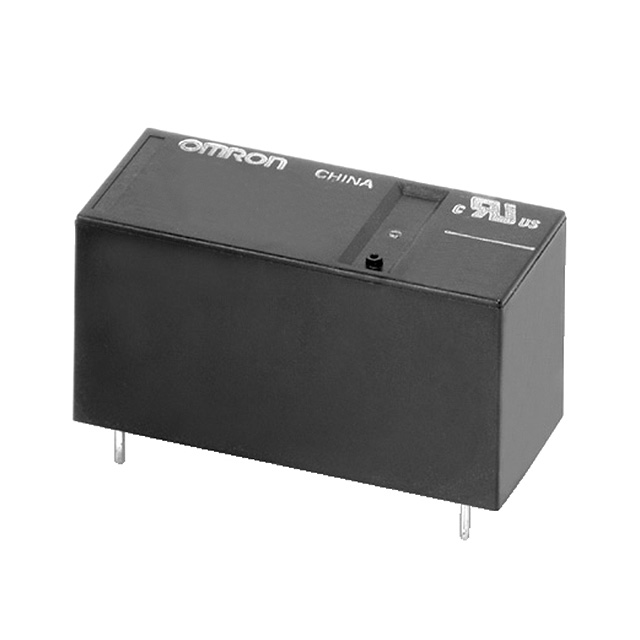

Omron Electronics Inc-EMC Div G5RL-1A-E-TV8 DC12	85 °C	-40 °C	Non Latching	384 W 4000 VA	360 Ohms	PC Pin	1.2 VDC	16 A	12 VDC	8.4 VDC	CQC CSA cURus UR VDE	33.3 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms
Omron Electronics Inc-EMC Div G5RL-1A-E-HR DC24	85 °C	-40 °C	Non Latching	384 W 4000 VA	1440 Ohms	PC Pin	2.4 VDC	16 A	24 VDC	16.8 VDC	CQC CSA cURus UR VDE	16.7 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms
Omron Electronics Inc-EMC Div G5RL-1A-E-LN DC12	85 °C	-40 °C	Non Latching	384 W 4000 VA	272 Ohms	PC Pin	1.2 VDC	16 A	12 VDC	8.4 VDC	CQC CSA cURus UR VDE	44.2 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	15 ms
Omron Electronics Inc-EMC Div G5RL-1A4-TV8 DC5	85 °C	-40 °C	Non Latching	288 W 3000 VA	62.5 Ohms	PC Pin	0.5 VDC	12 A	5 VDC	3.5 VDC	CQC CSA cURus UR VDE	80 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms
Omron Electronics Inc-EMC Div G5RL-1A-E-TV8 DC5	85 °C	-40 °C	Non Latching	384 W 4000 VA	62.5 Ohms	PC Pin	0.5 VDC	16 A	5 VDC	3.5 VDC	CQC CSA cURus UR VDE	80 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms
Omron Electronics Inc-EMC Div G5RL-1A-E-TV8 DC24	85 °C	-40 °C	Non Latching	384 W 4000 VA	1440 Ohms	PC Pin	2.4 VDC	16 A	24 VDC	16.8 VDC	CQC CSA cURus UR VDE	16.7 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	5 ms
Omron Electronics Inc-EMC Div G5RL-1A-LN DC24	85 °C	-40 °C	Non Latching	288 W 3000 VA		PC Pin	2.4 VDC	12 A	24 VDC	16.8 VDC	CQC CSA cURus UR VDE	22.1 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	15 ms
Omron Electronics Inc-EMC Div G5RL-1A-LN DC12	85 °C	-40 °C	Non Latching	288 W 3000 VA	272 Ohms	PC Pin	1.2 VDC	12 A	12 VDC	8.4 VDC	CQC CSA cURus UR VDE	44.2 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	15 ms

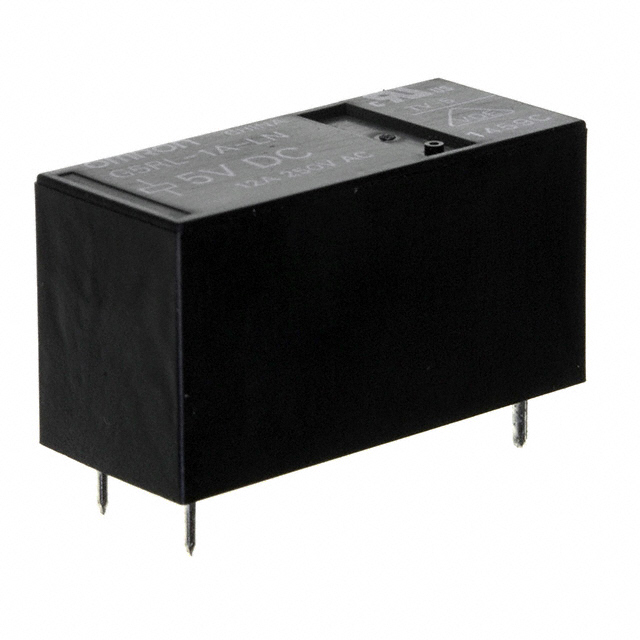

Omron Electronics Inc-EMC Div G5RL-1A-LN DC5	85 °C	-40 °C	Non Latching	288 W 3000 VA	47 Ohms	PC Pin	0.5 VDC	12 A	5 VDC	3.5 VDC	CQC CSA cURus UR VDE	106 mA	SPST-NO (1 Form A)	24 VDC 250 VAC	Sealed - Flux Protection	Through Hole	General Purpose	Silver Alloy	15 ms	15 ms
