RR9KE3000 Series

Catalog

AC/DC DSKTP/WALL MT ADPT 12V 36W

Part	Form	No Load Power Consumption	Standard Number	Current - Output (Max) [Max]	Applications	Input Type	Polarization	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Output Connector	Efficiency	Input Connector	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]

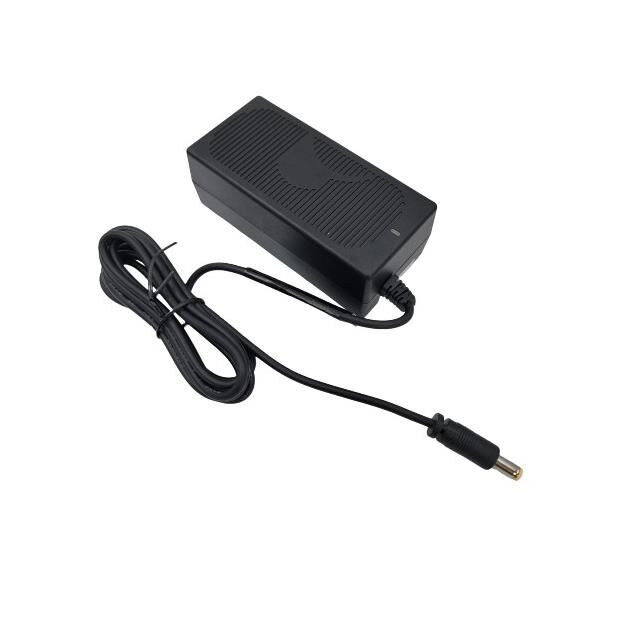

GlobTek, Inc. RR9KE3000CCP-IMR6B	Desktop Wall Mount	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	3 A	Household Appliances ITE (Commercial) Medical	Cord Multi-Blade (Sold Separately)	Positive Center	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	11 mm	2.1 mm 5.5 mm	Barrel Plug	Level VI	IEC 320-C8 Multi-Blade	1.5 m	59 in	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in	12 V	36 W	-20 ░C	40 °C	International
GlobTek, Inc. RR9KE3000T00CIMR6B	Desktop Desktop Wall Mount Wall Mount	75 mW	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	3 A	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	Negative Center	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC			Barrel Plug Kit (1.3mm x 3.5mm	CoC Tier 2 Level VI	IEC 320-C8 Multi-Blade	1.2 m	47.2 in		36.7 mm	47.5 mm	102.2 mm			12 V	36 W	-10 °C	40 °C	International	4.02 in	1.45 in	1.87 "
