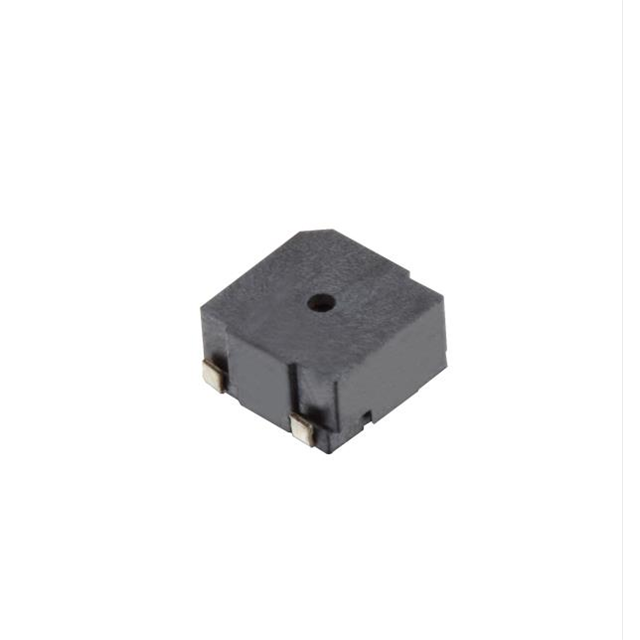

SFM-5540 Series
Manufacturer: East Electronics
Beta
⌘K
BUZZER 3.6V 5MMX5MMTH
| Part | Sound Pressure Level (SPL) | Mounting Type | Voltage - Rated | Current - Supply | Termination | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Range [Min] | Voltage Range [Max] | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 East Electronics | 78 dB | Through Hole | 3.6 VDC | 100 mA | PC Pins | 0.197 in | 0.197 " | 5 mm | 5 mm | 4 kHz | 0.118 " | 3 mm | 85 °C | -20 ░C | 2.5 V | 4.5 V | Continuous |
