RRG3113 Series
Manufacturer: E-Switch
Beta
⌘K
ROCKER SWITCH, NON ILLUMINATED, SPST, OFF-ON, BLACK, PANEL MOUNT, 10 A
| Part | Electrical Life | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Current Rating (Amps) | Color - Actuator/Cap | Mounting Type | Actuator Marking | Circuit | Voltage Rating - AC | Approval Agency | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

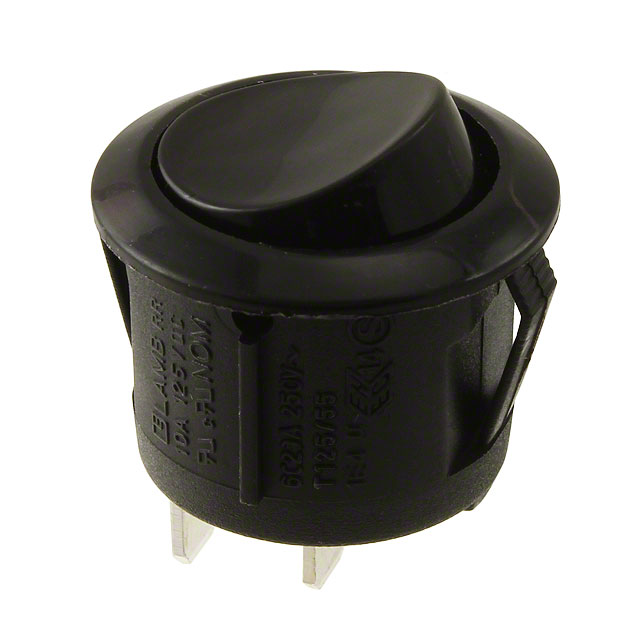

 E-Switch | 6000 Cycles | On-Off | Quick Connect | -20 ░C | 105 ░C | Round | 10 A | Black | Panel Mount Snap-In | No Marking | SPST | 125 V | cUL UL | ||

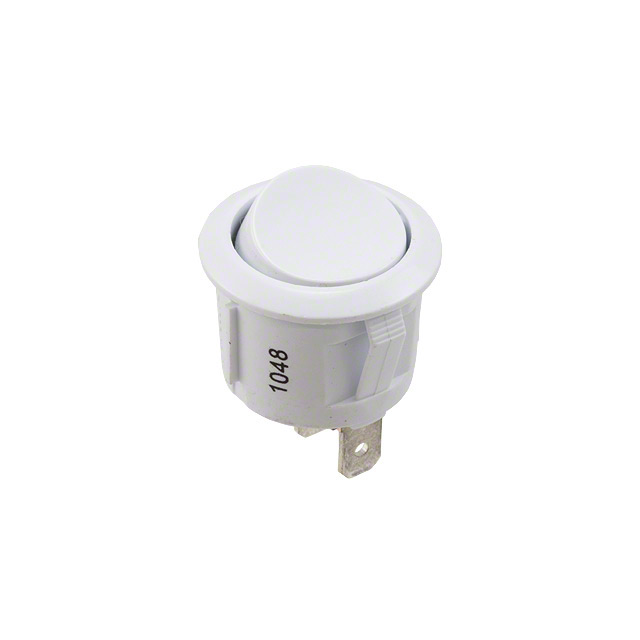

 E-Switch | 6000 Cycles | On-Off | Quick Connect | -20 ░C | 105 ░C | Round | 10 A | White | Panel Mount Snap-In | No Marking | SPST | 125 V | cUL UL | ||
 E-Switch | 10000 Cycles | Off-On | Solder Quick Connect | -20 ░C | 105 ░C | Round | 10 A | White | Panel Mount Snap-In | SPST | 125 V | cUL UL | 4.7 mm | 0.187 in |
