MRF581 Series

Catalog

RF TRANS NPN 15V 5GHZ MACRO X

Part	Package / Case	Noise Figure (dB Typ @ f) [Max]	Noise Figure (dB Typ @ f) [Min]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Frequency - Transition	Mounting Type	Gain [Min]	Gain [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]

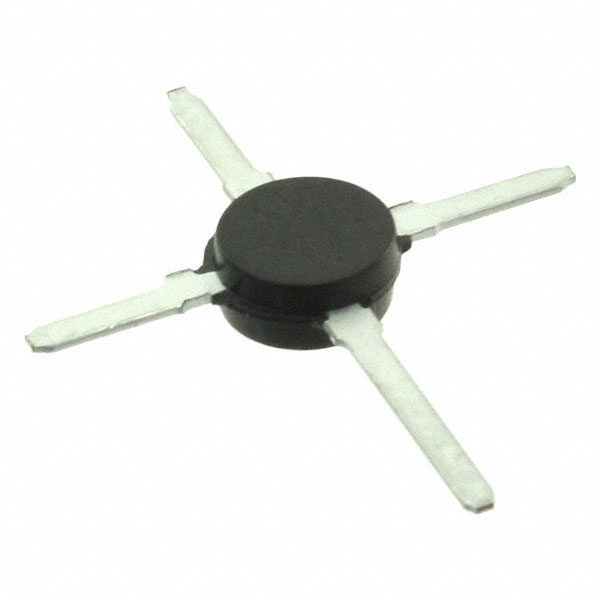

Microsemi Corporation MRF581AG	Macro-X	3.5 dB	3 dB	NPN	90	1.25 W	15 V	150 °C	5 GHz	Surface Mount	13 dB	15.5 dB	Macro-X	200 mA

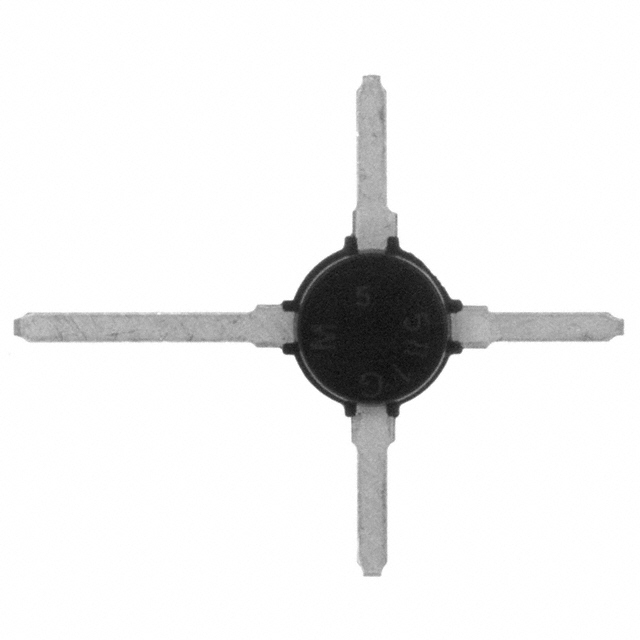

Microsemi Corporation MRF581G	Micro-X ceramic (84C)	3.5 dB	3 dB	NPN	50	1.25 W	18 V	150 °C	5 GHz	Surface Mount	13 dB	15.5 dB	Micro-X ceramic (84C)	200 mA
Microsemi Corporation MRF581	Micro-X ceramic (84C)	3.5 dB	3 dB	NPN	50	1.25 W	18 V	150 °C	5 GHz	Surface Mount	13 dB	15.5 dB	Micro-X ceramic (84C)	200 mA

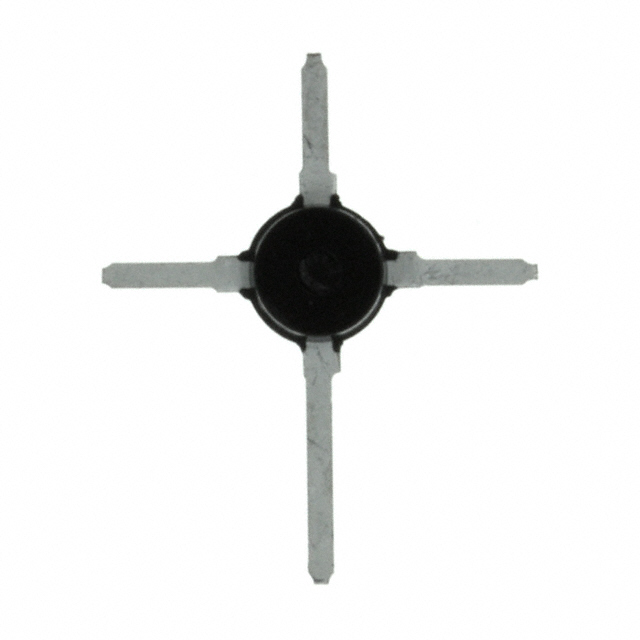

Microsemi Corporation MRF581A	Micro-X ceramic (84C)	3.5 dB	3 dB	NPN	90	1.25 W	15 V	150 °C	5 GHz	Surface Mount	13 dB	15.5 dB	Micro-X ceramic (84C)	200 mA
