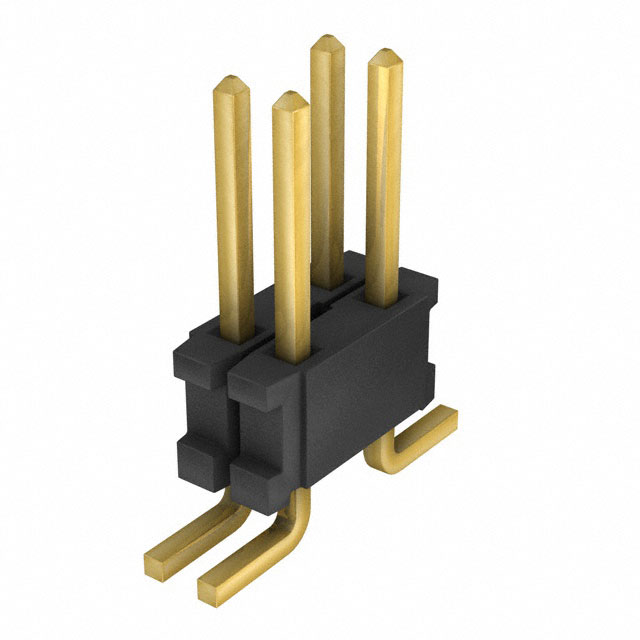

FTR-102 Series

Catalog

CONN HEADER SMD 4POS 1.27MM

Part	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Contact Type	Insulation Material	Number of Positions Loaded	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions	Number of Rows	Fastening Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating
Samtec Inc. FTR-102-56-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.405 in	10.29 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-02-T-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in		0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded			0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.1 in	2.54 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-51-G-D	3.1 A	Gold	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.19 "	4.83 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0	3 µin	0.076 µm

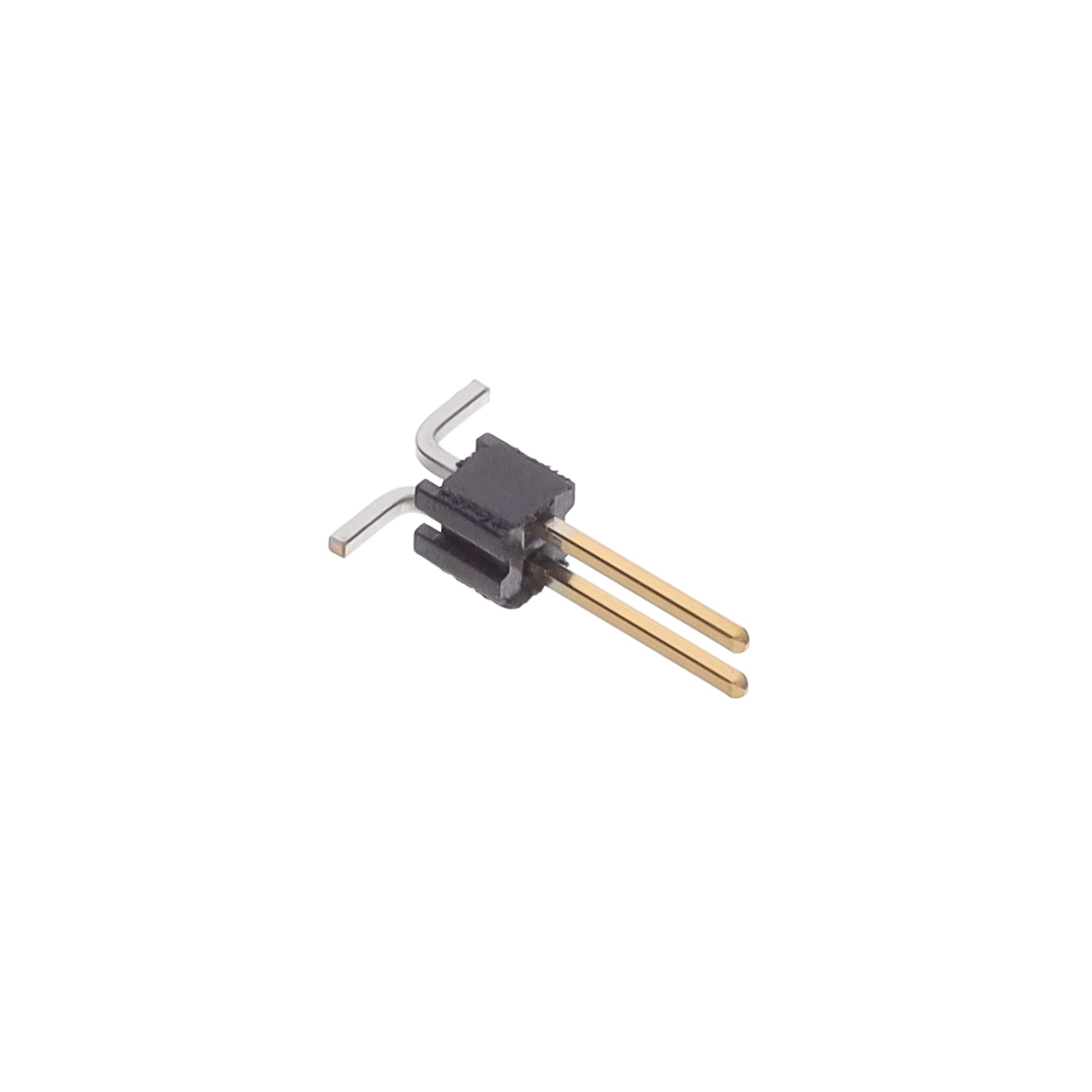

Samtec Inc. FTR-102-01-L-S	3.1 A	Tin	Black	Phosphor Bronze			Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		5.84 mm	Square	2	1	Push-Pull	Surface Mount	UL94 V-0			0.23 in
Samtec Inc. FTR-102-53-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.285 in	7.24 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-57-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		0.43 in	Square	4	2	Push-Pull	Surface Mount	UL94 V-0				10.92 mm
Samtec Inc. FTR-102-52-L-S	3.1 A	Tin	Black	Phosphor Bronze			Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.205 in	5.21 mm	Square	2	1	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-01-F-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	3 µin	0.076 µm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		5.84 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0			0.23 in
Samtec Inc. FTR-102-03-G-D-TR	3.1 A	Gold	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.125 in	3.18 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0	3 µin	0.076 µm
Samtec Inc. FTR-102-03-L-D-TR	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.125 in	3.18 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
