ZX10C Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER PC PINS 0.1A 125VAC 60VDC 0.88N THRU-HOLE

Part	Mechanical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Termination Style	Circuit	Operating Force	Overtravel [custom]	Overtravel [custom]	Actuator Type	Differential Travel	Differential Travel	Electrical Life	Voltage Rating - DC	Mounting Type	Release Force	Pretravel	Pretravel	Current Rating (Amps)	Differential Travel

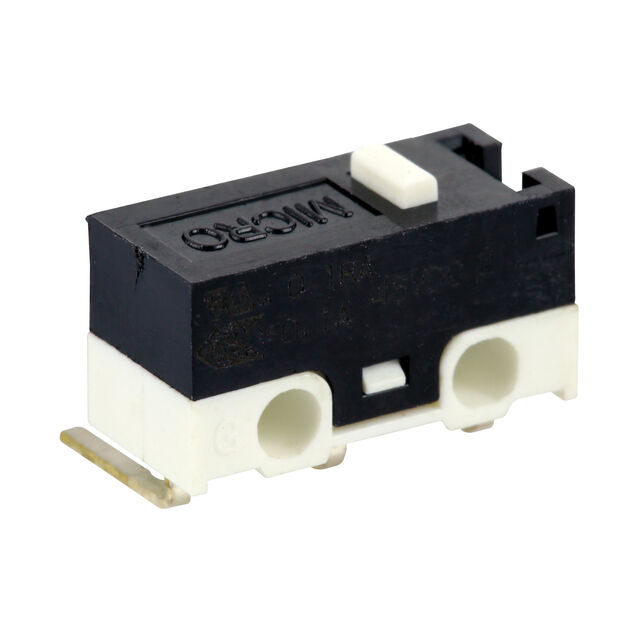

Honeywell Sensing and Productivity Solutions ZX10C60A01	1000000 Cycles	On-Mom	120 °C	-40 C	7 mm	0.276 in	PC Pin	SPDT	90 gf	0.008 in	0.2 mm	Round (Pin Plunger)	0.012 in	0.3 mm	1000000 Cycles	48 V	Right Angle Through Hole	15 gf	0.051 in	1.3 mm	100 mA

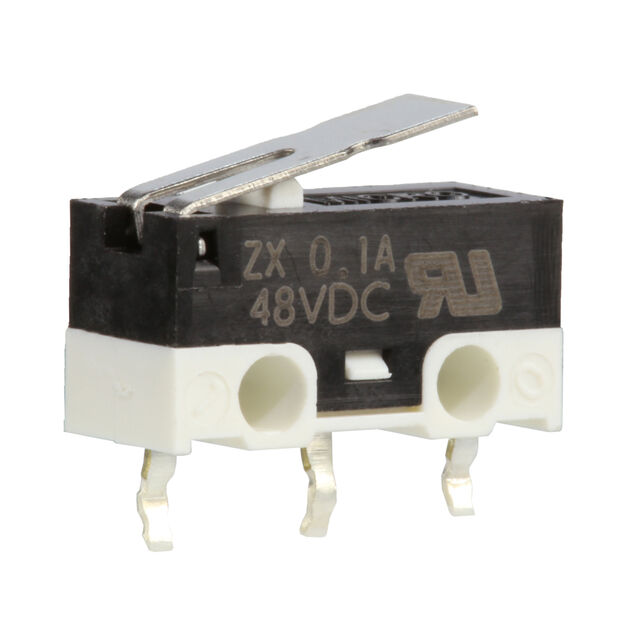

Honeywell Sensing and Productivity Solutions ZX10C30B01	1000000 Cycles	On-Mom	120 °C	-40 C	6.4 mm	0.25 in	PC Pin	SPDT	40 gf	0.025 in	0.6 mm	Lever Straight		0.05 in	1000000 Cycles	48 V	Through Hole	6 gf	0.134 "	3.4 mm	100 mA	1.3 mm
