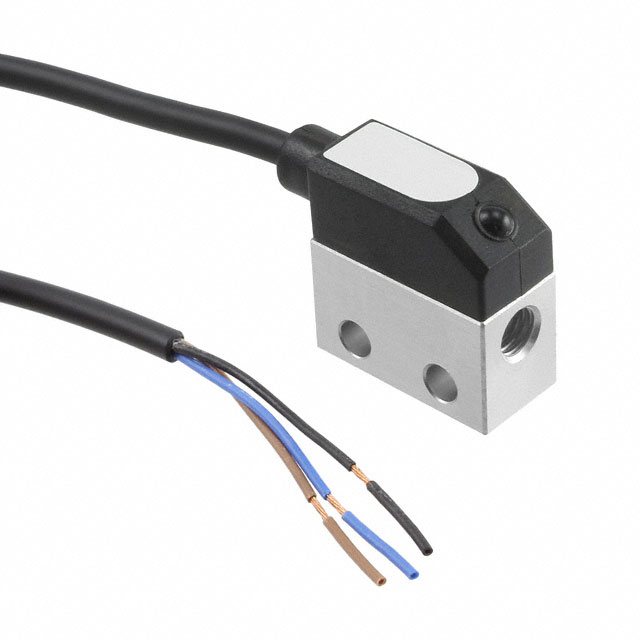

PA-20 Series

Manufacturer: Nidec Components Corporation

Catalog

PRES TRANSD -100-300 KPA

Part	Features	Pressure Type	Package / Case	Port Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Termination Style	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Output [Max]	Output [Min]	Applications	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Operating Pressure	Operating Pressure
Nidec Components Corporation PA-20-302R-U	Temperature Compensated	Compound	Module	M5 Male	30 VDC	10.8 VDC	3 bar	-14.5 PSI	43.51 PSI	-1 bar	Cable	Analog Voltage	4136.85 kPa	600 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module
Nidec Components Corporation PA-20-102V-U	Temperature Compensated	Vacuum	Module	M5 Male	30 VDC	10.8 VDC					Cable	Analog Voltage	-1378.95 kPa	-200 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module	-14.5 PSI	-1 bar
Nidec Components Corporation PA-20-102V-U-3M	Temperature Compensated	Vacuum	Module	M5 Male	30 VDC	10.8 VDC					Cable	Analog Voltage	-1378.95 kPa	-200 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module	-14.5 PSI	-1 bar
Nidec Components Corporation PA-20-302R-M	Temperature Compensated	Compound	Module	Female M5	30 VDC	10.8 VDC	3 bar	-14.5 PSI	43.51 PSI	-1 bar	Cable	Analog Voltage	4136.85 kPa	600 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module
Nidec Components Corporation PA-20-102V-M-3M	Temperature Compensated	Vacuum	Module	Female M5	30 VDC	10.8 VDC					Cable	Analog Voltage	-1378.95 kPa	-200 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module	-14.5 PSI	-1 bar
Nidec Components Corporation PA-20-302R-U-3M	Temperature Compensated	Compound	Module	M5 Male	30 VDC	10.8 VDC	3 bar	-14.5 PSI	43.51 PSI	-1 bar	Cable	Analog Voltage	4136.85 kPa	600 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module
Nidec Components Corporation PA-20-302R-M-3M	Temperature Compensated	Compound	Module	Female M5	30 VDC	10.8 VDC	3 bar	-14.5 PSI	43.51 PSI	-1 bar	Cable	Analog Voltage	4136.85 kPa	600 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module
Nidec Components Corporation PA-20-102V-M	Temperature Compensated	Vacuum	Module	Female M5	30 VDC	10.8 VDC					Cable	Analog Voltage	-1378.95 kPa	-200 PSI	Threaded	5 V	1 V	Industrial Automation	0.5 %	-10 °C	60 °C	Module	-14.5 PSI	-1 bar
