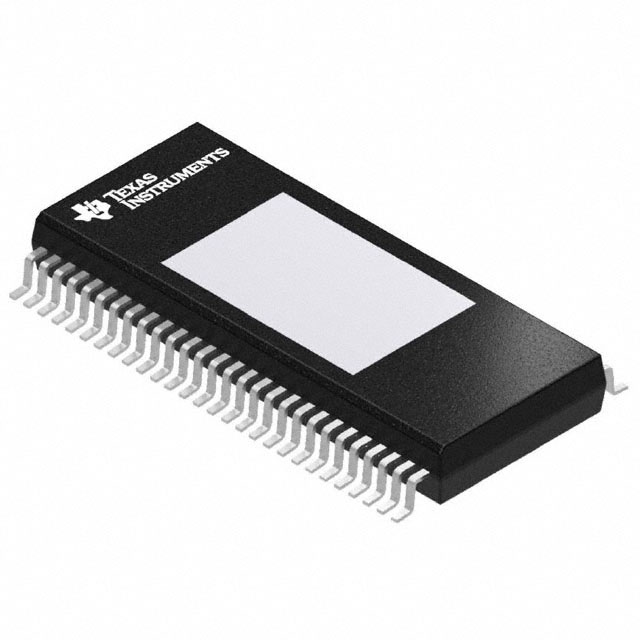

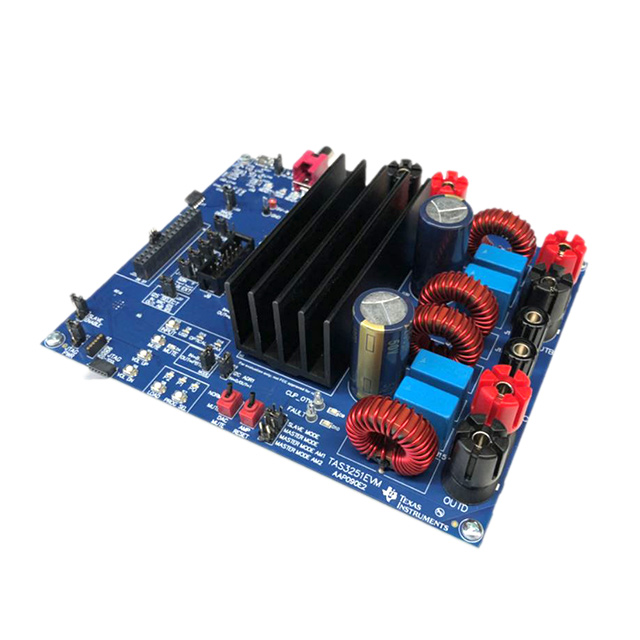

TAS3251 Series
175-W stereo, 350-W mono, 12- to 38-V supply, digital input Class-D Smart Audio Amplifier
Manufacturer: Texas Instruments
Catalog
175-W stereo, 350-W mono, 12- to 38-V supply, digital input Class-D Smart Audio Amplifier
Key Features
• Flexible Audio InputsI2S, TDM, Left-Justified, Right-Justified32 kHz, 44.1 kHz, 48 kHz, 96 kHzSupports 3-Wire Digital Input (No MCLK)Total Output Power at 10% THD+N175-W Stereo into 4 Ω in BTL Configuration220-W Stereo into 3 Ω in BTL Configuration350-W Mono into 2 Ω in PBTL ConfigurationTotal Output Power at 1% THD+N140-W Stereo into 4 Ω in BTL Configuration175-W Stereo into 3 Ω in BTL Configuration285-W Mono into 2 Ω in PBTL ConfigurationAdvanced Integrated Closed-Loop DesignUltra Low 0.01% THD+N at 1 W Into 4 Ω<0.01% THD+N to Clipping60 dB PSRR (BTL, No Input Signal)<95 µV Output Noise (A-Weighted)>108 dB SNR (A-Weighted)Fixed-Function Processing FeaturesSmartEQ (Up To 15x BiQuads Per Channel)Crossover EQ (2x 5 BiQuads)3-Band Advanced DRC + AGLDynamic EQ and SmartBassSample Rate ConversionControl FeaturesI2C Software Mode ControlAddress Select Pin90% Efficient Class-D Operation (4 Ω)Wide 12-V to 36-V Supply Voltage OperationIntegrated Protection with Error Reporting: Undervoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping detection, Overtemperature Warning and Shutdown and DC Speaker ProtectionFlexible Audio InputsI2S, TDM, Left-Justified, Right-Justified32 kHz, 44.1 kHz, 48 kHz, 96 kHzSupports 3-Wire Digital Input (No MCLK)Total Output Power at 10% THD+N175-W Stereo into 4 Ω in BTL Configuration220-W Stereo into 3 Ω in BTL Configuration350-W Mono into 2 Ω in PBTL ConfigurationTotal Output Power at 1% THD+N140-W Stereo into 4 Ω in BTL Configuration175-W Stereo into 3 Ω in BTL Configuration285-W Mono into 2 Ω in PBTL ConfigurationAdvanced Integrated Closed-Loop DesignUltra Low 0.01% THD+N at 1 W Into 4 Ω<0.01% THD+N to Clipping60 dB PSRR (BTL, No Input Signal)<95 µV Output Noise (A-Weighted)>108 dB SNR (A-Weighted)Fixed-Function Processing FeaturesSmartEQ (Up To 15x BiQuads Per Channel)Crossover EQ (2x 5 BiQuads)3-Band Advanced DRC + AGLDynamic EQ and SmartBassSample Rate ConversionControl FeaturesI2C Software Mode ControlAddress Select Pin90% Efficient Class-D Operation (4 Ω)Wide 12-V to 36-V Supply Voltage OperationIntegrated Protection with Error Reporting: Undervoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping detection, Overtemperature Warning and Shutdown and DC Speaker Protection
Description
AI
TAS3251 is a digital-input, high-performance Class-D audio amplifier that enables true premium sound quality with Class-D efficiency. The digital front-end features a high-performance Burr-Brown™ DAC with integrated DSP for advanced audio processing, including SmartAmp and SmartEQ. The first high-power single-chip solution reduces overall system solution size and cost. The DSP is supported by TI PurePath™ Console Graphical tuning software for quick and easy speaker tuning and control. The Class-D power stage features advanced integrated feedback and proprietary high-speed gate drive error correction for ultra-low distortion and noise across the audio band. The device operates in AD-mode and can drive up to 2 x 175 W into 4 Ω load and 2 x 220 W into 3 Ω load.
TAS3251 is a digital-input, high-performance Class-D audio amplifier that enables true premium sound quality with Class-D efficiency. The digital front-end features a high-performance Burr-Brown™ DAC with integrated DSP for advanced audio processing, including SmartAmp and SmartEQ. The first high-power single-chip solution reduces overall system solution size and cost. The DSP is supported by TI PurePath™ Console Graphical tuning software for quick and easy speaker tuning and control. The Class-D power stage features advanced integrated feedback and proprietary high-speed gate drive error correction for ultra-low distortion and noise across the audio band. The device operates in AD-mode and can drive up to 2 x 175 W into 4 Ω load and 2 x 220 W into 3 Ω load.
