MWC100012 Series

Catalog

DESKTOP AC ADAPTERS 100W 12V 8.3A CLASS II MEDICAL C8

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Approval Agency	Voltage - Output	Efficiency	Output Connector	Output Connector	Applications	Input Type	Input Connector	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	No Load Power Consumption	Region Utilized	Weight	Weight
Inventus Power MWC100012B-12A	0 °C	60 °C	1.22 m	48 in	CE cTUVus cULus	12 V	Level V	DIN	8 Pin	Medical	Cord (Sold Separately)	IEC 320-C14	Desktop (Class I)	7.09 in	57.7 mm	1.52 in	180.1 mm	2.27 in	38.6 mm	100 W	8.3 A	500 mW	International

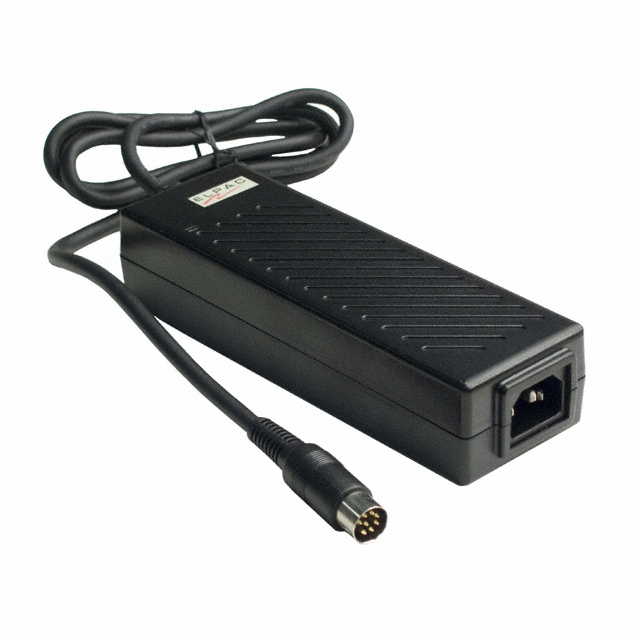

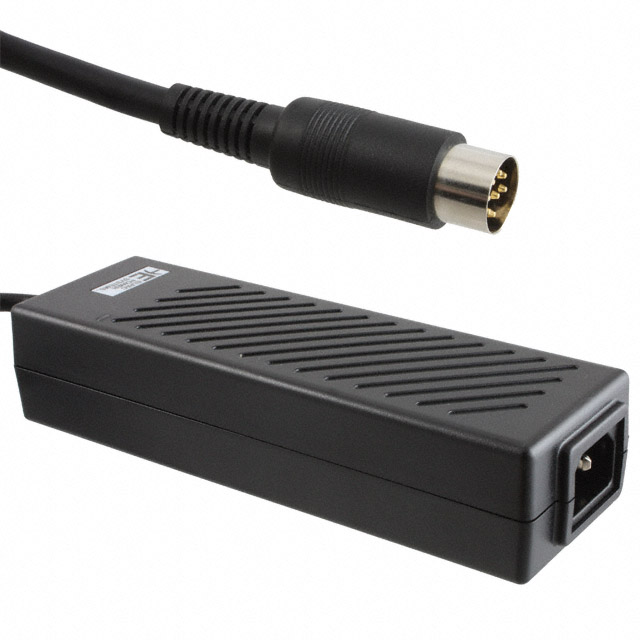

Inventus Power MWC100012A-12A	0 °C	60 °C	1.22 m	48 in	CB CE cTUVus	12 V	Level V	DIN	8 Pin	Medical	Cord (Sold Separately)	IEC 320-C14	Desktop (Class I)	7.09 in	57.5 mm	1.52 in	180.2 mm	2.27 in	38.6 mm	100 W	8.3 A	500 mW	International	1.6 lbs	725.7 g
