NRPN402 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

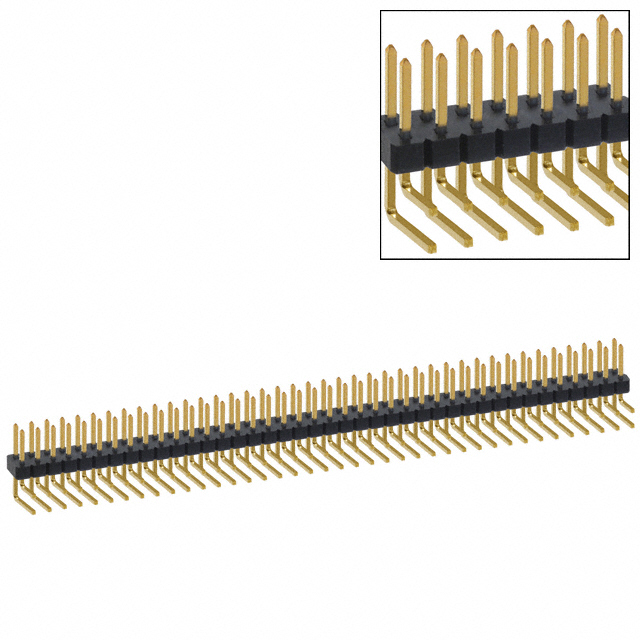

CONN HEADER R/A 80POS 2MM
| Part | Contact Finish Thickness - Post | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Contact Length - Post [custom] | Contact Length - Post | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Number of Positions Loaded | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Termination | Voltage Rating | Style | Insulation Color | Fastening Type | Shrouding | Current Rating (Amps) | Connector Type | Number of Rows [custom] | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | 0.141 in | 3.6 mm | Gold | 0.11 in | 2.79 mm | Square | 2 mm | 0.079 in | Male Pin | All | Right Angle Through Hole | 80 | 0.079 " | 2 mm | Gold | Solder | 150 VDC | Board to Board Cable | Black | Push-Pull | Unshrouded | 2 A | Header | 2 | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Flash | UL94 V-0 | Brass | 4 mm | 0.157 in |
