846-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K

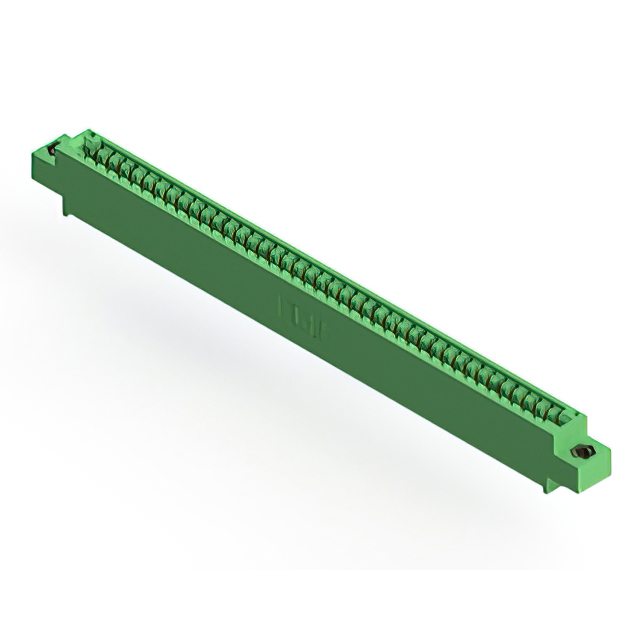

CONN EDGE SGL FMALE 41POS 0.125
| Part | Material - Insulation | Termination Rows | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Mounting Type | Pitch | Pitch | Number of Rows | Gender | Color | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Card Type | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Right Angle Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | 4-40 Threaded Insert Top Mount Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Flush Mount M3 Threaded Insert Top Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Right Angle Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | 0.156 " | 3.96 mm | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Flush Mount M3 Threaded Insert Top Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Flush Mount M3 Threaded Insert Top Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | M3 Threaded Insert Top Mount Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | 125 °C | -40 C | 41 | Through Hole | 3.18 mm | 0.125 in | 1 | Female | Green | Single | 0.25 Ám | 10 Áin | Gold | M3 Threaded Insert Top Mount Opening | 41 | Non Specified - Single Edge | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
