D2MQ Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACTION SPDT 0.5A 30V

Part	Current Rating (Amps)	Mechanical Life	Switch Function	Termination Style	Operating Force	Actuator Type	Circuit	Electrical Life	Voltage Rating - DC	Differential Travel	Differential Travel	Ingress Protection	Release Force	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Position [x]	Operating Position [x]	Pretravel	Pretravel	Operating Position [custom]	Operating Position [custom]	Operating Position	Operating Position

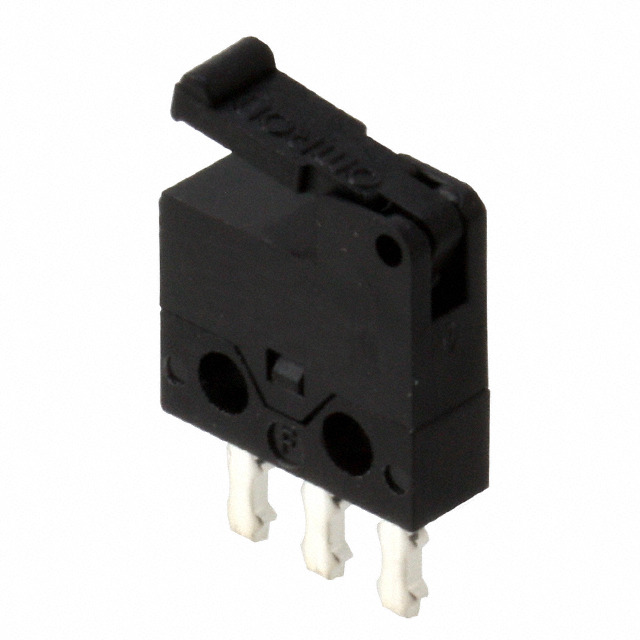

Omron Electronics Inc-EMC Div D2MQ-4L-1	500 mA	30000 Steps	On-Mom	PC Pin	40 gf	Lever Straight	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	4.079 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole	0.28 in	7.1 mm	2.1 mm	0.083 in

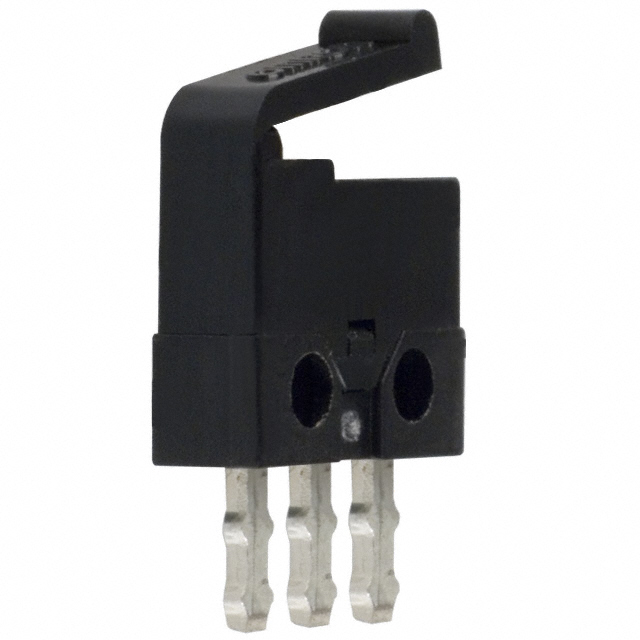

Omron Electronics Inc-EMC Div D2MQ-1L	500 mA	30000 Steps	On-Mom	PC Pin	60 gf	Leaf Lever	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	8.158 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole					6.7 mm	0.264 "

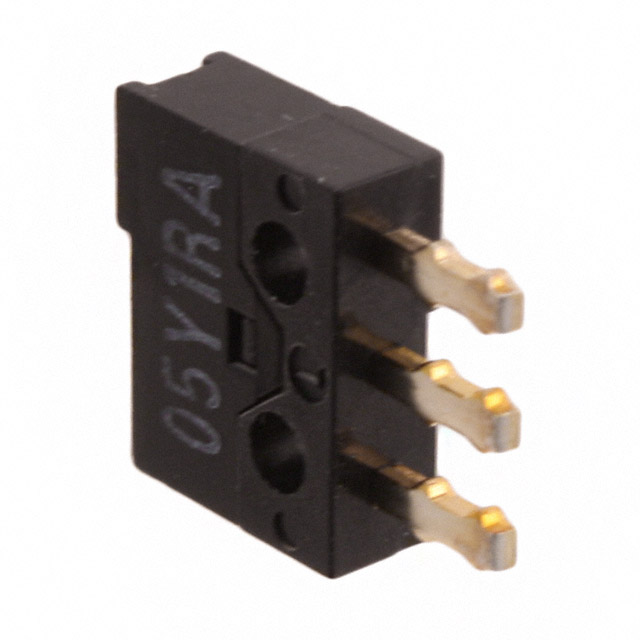

Omron Electronics Inc-EMC Div D2MQ-1-105-TR	50 mA	30000 Steps	On-Mom	PC Pin	120 gf	Round (Pin Plunger)	SPDT	10000 Cycles	30 V	0.004 in	0.1 mm	IP40	21 gf	0.1 mm	0.004 in	-15 °C	70 °C	Through Hole Right Angle			0.4 mm	0.015 in			0.224 "	5.7 mm
Omron Electronics Inc-EMC Div D2MQ-1-TR	500 mA	30000 Steps	On-Mom	PC Pin	120 gf	Round (Pin Plunger)	SPDT	10000 Cycles	30 V	0.004 in	0.1 mm	IP40	21 gf	0.1 mm	0.004 in	-15 °C	70 °C	Through Hole Right Angle			0.4 mm	0.015 in			0.224 "	5.7 mm

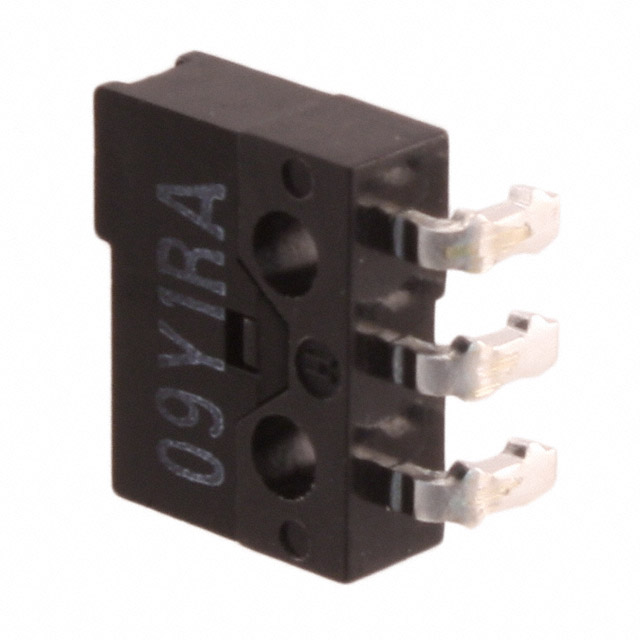

Omron Electronics Inc-EMC Div D2MQ-1-TL	500 mA	30000 Steps	On-Mom	PC Pin	120 gf	Round (Pin Plunger)	SPDT	10000 Cycles	30 V	0.004 in	0.1 mm	IP40	21 gf	0.1 mm	0.004 in	-15 °C	70 °C	Through Hole Right Angle			0.4 mm	0.015 in			0.224 "	5.7 mm

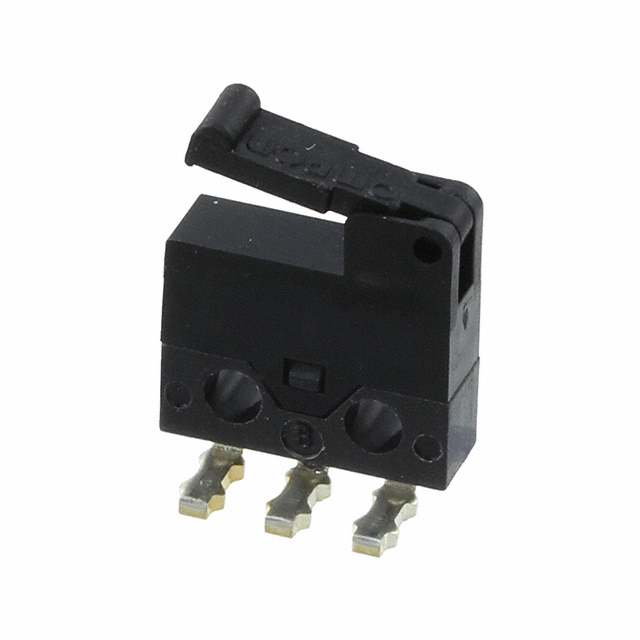

Omron Electronics Inc-EMC Div D2MQ-4L-105-1-R	50 mA	30000 Steps	On-Mom	PC Pin	40 gf	Lever Straight	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	4.079 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole Right Angle	0.28 in	7.1 mm	2.1 mm	0.083 in

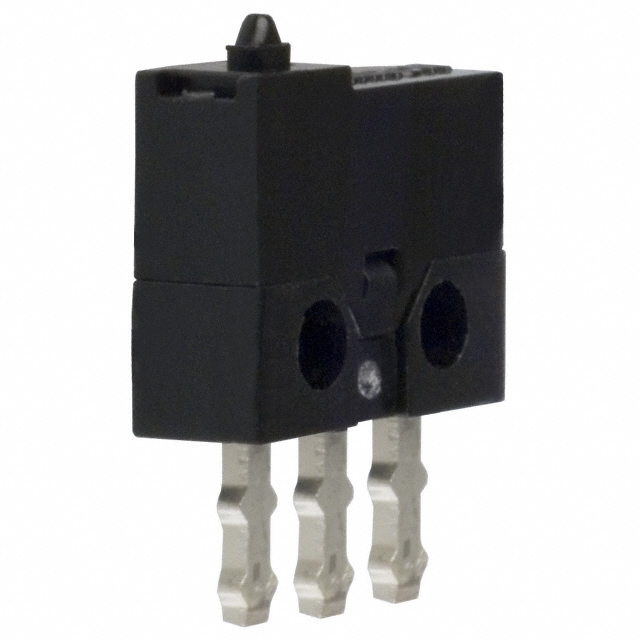

Omron Electronics Inc-EMC Div D2MQ-1	500 mA	30000 Steps	On-Mom	PC Pin	120 gf	Round (Pin Plunger)	SPDT	10000 Cycles	30 V	0.004 in	0.1 mm	IP40	21 gf	0.1 mm	0.004 in	-15 °C	70 °C	Through Hole			0.4 mm	0.015 in			0.224 "	5.7 mm
Omron Electronics Inc-EMC Div D2MQ-4L-105-1	50 mA	30000 Steps	On-Mom	PC Pin	40 gf	Lever Straight	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	4.079 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole	0.28 in	7.1 mm	2.1 mm	0.083 in

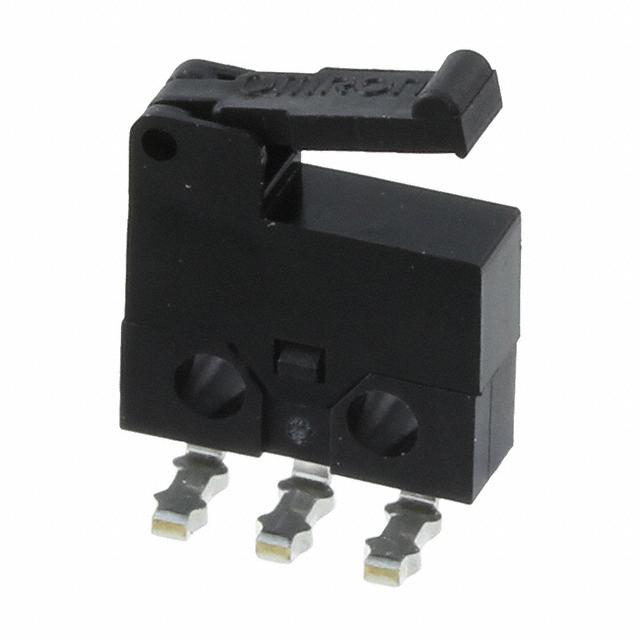

Omron Electronics Inc-EMC Div D2MQ-4L-1-L	500 mA	30000 Steps	On-Mom	PC Pin	40 gf	Lever Straight	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	4.079 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole Right Angle	0.28 in	7.1 mm	2.1 mm	0.083 in

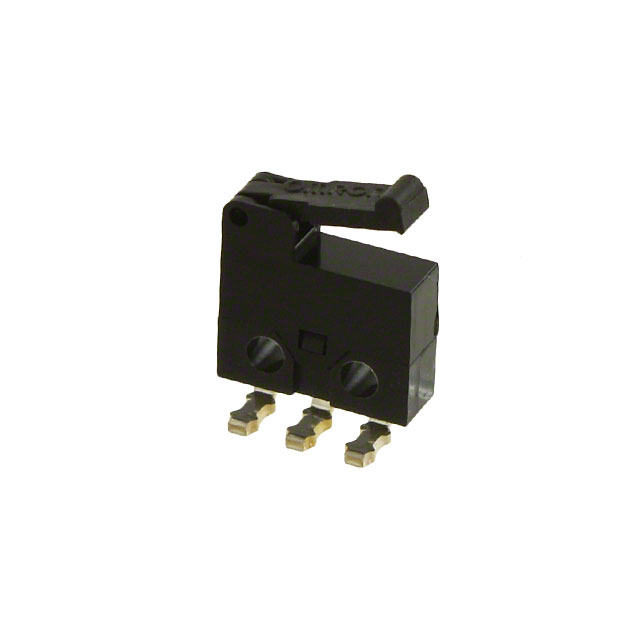

Omron Electronics Inc-EMC Div D2MQ-4L-105-1-L	50 mA	30000 Steps	On-Mom	PC Pin	40 gf	Lever Straight	SPDT	10000 Cycles	30 V	0.027 "	0.7 mm	IP40	4.079 gf	0.3 mm	0.011 in	-15 °C	70 °C	Through Hole Right Angle	0.28 in	7.1 mm	2.1 mm	0.083 in
