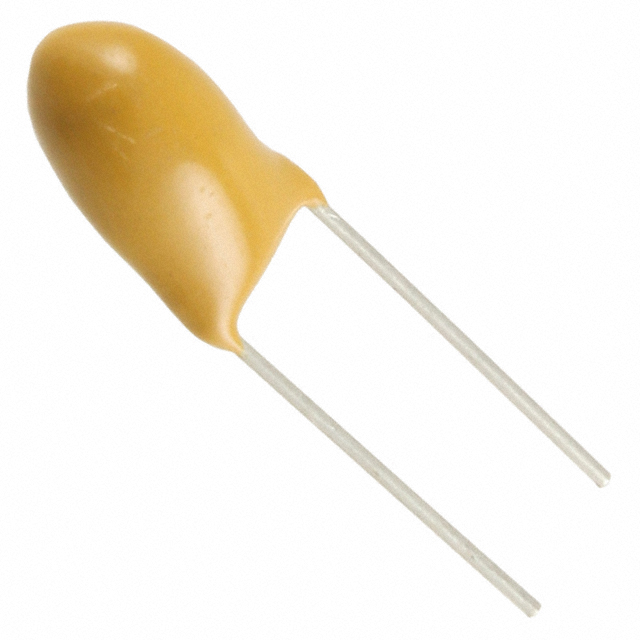

T350J Series

Manufacturer: KEMET

Catalog

CAPACITOR,33UF,25VDC,20-% TOL,20+% TOL

Part	Lead Spacing	Lead Spacing	Voltage - Rated	Capacitance	Type	ESR (Equivalent Series Resistance)	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Package / Case	Size / Dimension [diameter]	Size / Dimension	Features
KEMET T350J336M025AS	0.2 in	5.08 mm	25 VDC	33 ÁF	Conformal Coated	1.2 Ohm	Through Hole	20 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J157K006AS	0.2 in	5.08 mm	6.3 VDC	150 µF	Conformal Coated	900 mOhm	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J157K006AT	0.2 in	5.08 mm	6.3 VDC	150 µF	Conformal Coated	900 mOhm	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J685K050AT	0.2 in	5.08 mm	50 VDC	6.8 µF	Conformal Coated	2 Ohms	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J476K016AT	0.2 in	5.08 mm	16 V	47 µF	Conformal Coated	1.3 Ohm	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J107K010AT	0.2 in	5.08 mm	10 V	100 µF	Conformal Coated	1 Ohms	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
KEMET T350J107K010AS	0.2 in	5.08 mm	10 V	100 µF	Conformal Coated	1 Ohms	Through Hole	10 %	-55 C	125 °C	0.5 in	12.7 mm	J	Radial	0.331 in	8.4 mm	General Purpose
