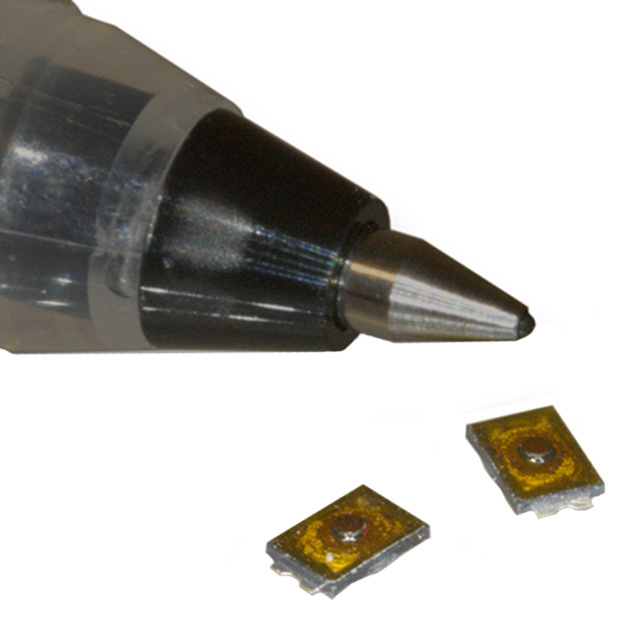

TL3750 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Height off PCB, Vertical [z] | Circuit | Switch Function | Actuator Orientation | Outline [y] | Outline [x] | Mounting Type | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Operating Force | Contact Rating @ Voltage | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.13 mm | 300000 Cycles | 0.58 mm | SPST-NO | Off-Mom | Top Actuated | 2 mm | 3 mm | Surface Mount | Standard | 85 °C | -30 ░C | Gull Wing | 100 gf | 0.05 A 12 VDC | Non-Illuminated |
