9223 Series
Manufacturer: Belden Inc.
Beta
⌘K

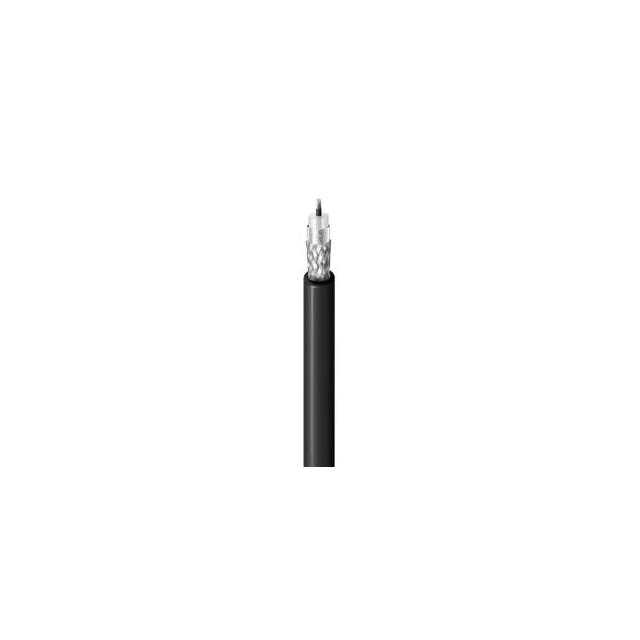

COAXIAL CABLE, LOW NOISE, RG58, 22 AWG, 50 OHM, 100 FT, 30.48 M
| Part | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Length | Length | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Cable Group | Wire Gauge | Conductor Strand | Jacket Color | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 56 | 80 °C | -40 C | 95 % 100 % | Copper Tinned | 2.84 mm | 0.112 in | Aluminum Copper Tinned | 100 ' | 30.48 m | 50 Ohms | 0.195 " | 4.95 mm | Coaxial | Braid Foil | RG-58 | 22 AWG | 7 Strands 30 AWG | Black | Poly-Vinyl Chloride (PVC) | ||
 Belden Inc. | 56 | 80 °C | -40 C | 95 % 100 % | Copper Tinned | 2.84 mm | 0.112 in | Aluminum Copper Tinned | 50 Ohms | 0.195 " | 4.95 mm | Coaxial | Braid Foil | RG-58 | 22 AWG | 7 Strands 30 AWG | Black | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
