78036 Series

Catalog

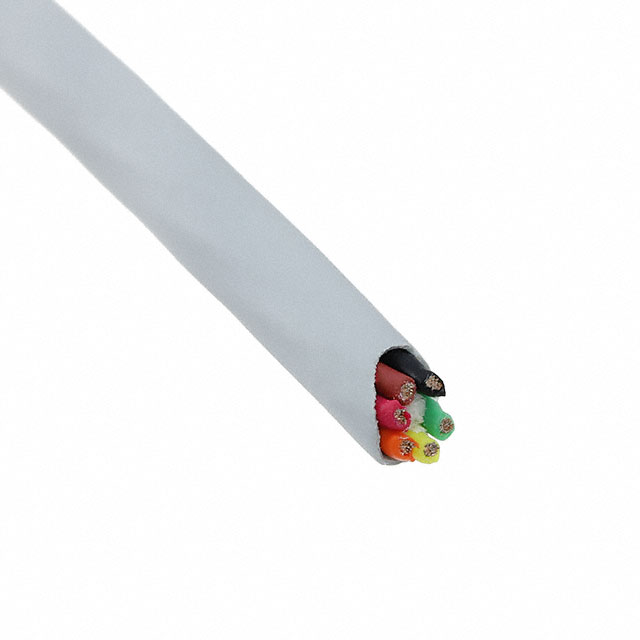

CABLE 6COND 22AWG SLATE 100'

Part	Jacket Color	Number of Conductors	Cable Type	Conductor Strand [custom]	Conductor Strand	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Features	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Material	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 78036 SL005	Slate	6	Multi-Conductor	19 Strands	34 AWG	Polyphenylene Ether Modified (mPPE)	-40 °C	80 C	300 V	Biological Compatibility Rip Cord	22 AWG	30.5 m	100 ft	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460	Copper Tinned	4.39 mm	0.173 in	0.015 in	0.381 mm
ALPHA WIRE 78036 SL199	Slate	6	Multi-Conductor	19 Strands	34 AWG	Polyphenylene Ether Modified (mPPE)	-40 °C	80 C	300 V	Biological Compatibility Rip Cord	22 AWG			Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460	Copper Tinned	4.39 mm	0.173 in	0.015 in	0.381 mm	1 ft	300 mm
