66953 Series

Catalog

CONN RCPT 28POS 0.1 GOLD PCB

Part	Contact Type	Contact Finish - Post	Connector Type	Contact Finish - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Voltage Rating	Number of Positions	Contact Material	Fastening Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Insulation Color	Contact Finish Thickness - Post
Amphenol ICC (FCI) 66953-014	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	28	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-019	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	38	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-017	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	34	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-036LF	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	72	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black

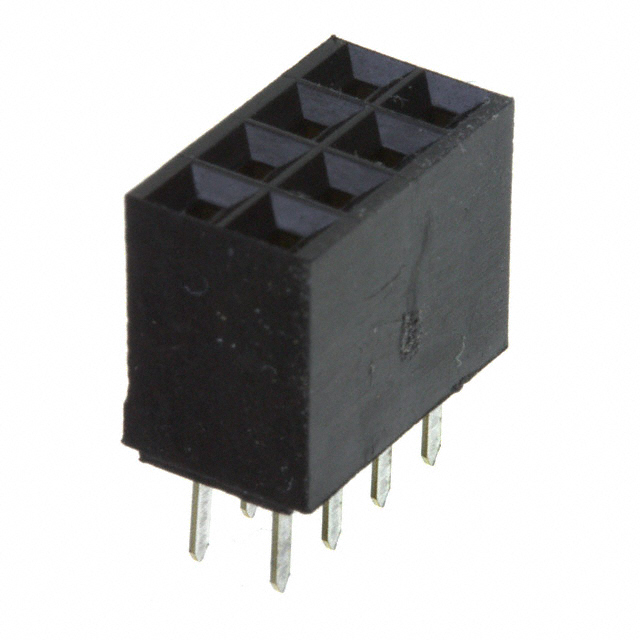

Amphenol ICC (FCI) 66953-004LF	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	8	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-011LF	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	22 positions	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-110	Female Socket	Gold	Receptacle	Gold	2	3.5 mm	0.138 in			8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	20	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black	Flash
Amphenol ICC (FCI) 66953-035LF	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	70	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
Amphenol ICC (FCI) 66953-010	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	20	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black

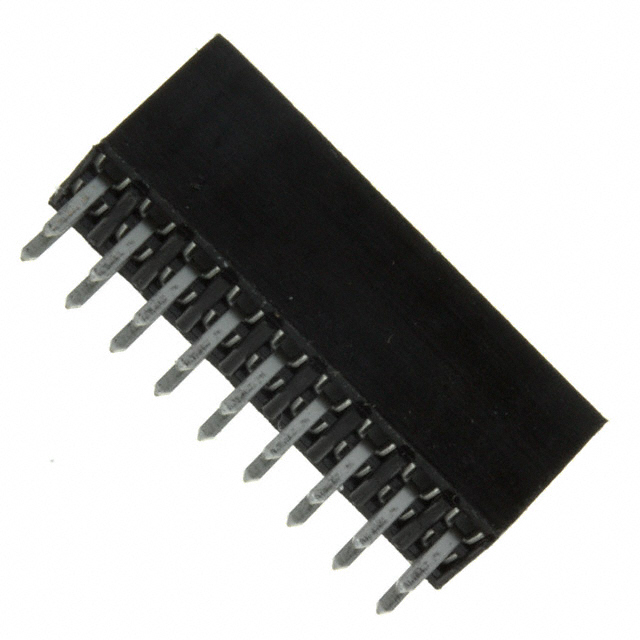

Amphenol ICC (FCI) 66953-009LF	Female Socket	Tin	Receptacle	Gold	2	3.5 mm	0.138 in	2.54 µm	100 µin	8.25 mm	0.325 in	All	0.1 in	2.54 mm	Solder	2.54 mm	0.1 in	UL94 V-0	125 °C	-65 ░C	Square	1250 VDC	18	Brass	Push-Pull	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Polyester Glass Filled	Through Hole	Black
