LM50672 Series

-9-V to -80-V hot swap controller with power limiting

Catalog

-9-V to -80-V hot swap controller with power limiting

Part	Utilized IC / Part	Type	Supplied Contents	Programmable Features	Package / Case	Package / Case [x]	Package / Case [x]	Current - Supply	Features	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Package / Case	Package / Case

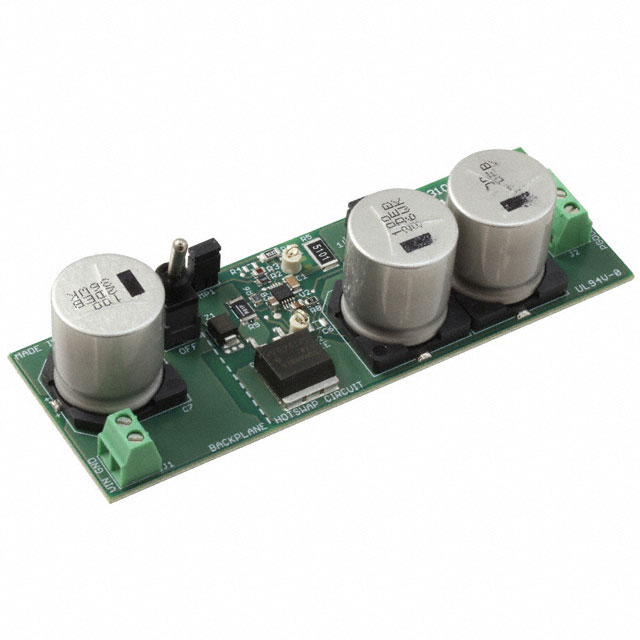

Texas Instruments LM5067EVAL	LM5067	Power Management	Board(s)
Texas Instruments LM5067MM-2/NOPB		Hot Swap Controller		Circuit Breaker Current Limit Fault Timeout OVP UVLO	10-MSOP 10-TFSOP	3 mm	0.118 in	2 mA	Auto Retry	Surface Mount	10-VSSOP	-80 V	-9 V	-48 V	125 °C	-40 °C	1
Texas Instruments LM50672NPAR		Hot Swap Controller		Circuit Breaker Current Limit Fault Timeout OVP UVLO	14-SOIC			2 mA		Surface Mount		-9 V	-80 V		125 °C	-40 °C	1	0.295 in	7.5 mm
Texas Instruments LM5067MWX-1/NOPB		Hot Swap Controller		Circuit Breaker Current Limit Fault Timeout OVP UVLO	14-SOIC			2 mA	Latched Fault	Surface Mount		-80 V	-9 V	-48 V	125 °C	-40 °C	1	0.295 in	7.5 mm
Texas Instruments LM5067MM-1/NOPB		Hot Swap Controller		Circuit Breaker Current Limit Fault Timeout OVP UVLO	10-MSOP 10-TFSOP	3 mm	0.118 in	2 mA	Latched Fault	Surface Mount	10-VSSOP	-80 V	-9 V	-48 V	125 °C	-40 °C	1
Texas Instruments LM5067MMX-1/NOPB		Hot Swap Controller		Circuit Breaker Current Limit Fault Timeout OVP UVLO	10-MSOP 10-TFSOP	3 mm	0.118 in	2 mA	Latched Fault	Surface Mount	10-VSSOP	-80 V	-9 V	-48 V	125 °C	-40 °C	1

Catalog

-9-V to -80-V hot swap controller with power limiting

Key Features

• Wide operating range: –9 V to –80 VIn-rush current limit for safe board insertion into live power sourcesProgrammable maximum power dissipation in the external pass deviceAdjustable current limitCircuit breaker function for severe overcurrent eventsAdjustable undervoltage lockout (UVLO) and hysteresisAdjustable overvoltage lockout (OVLO) and hysteresisInitial insertion timer allows ringing and transients to subside after system connectionProgrammable fault timer avoids nuisance tripsActive high open drain POWER GOOD outputAvailable in latched fault and automatic restart versionsWide operating range: –9 V to –80 VIn-rush current limit for safe board insertion into live power sourcesProgrammable maximum power dissipation in the external pass deviceAdjustable current limitCircuit breaker function for severe overcurrent eventsAdjustable undervoltage lockout (UVLO) and hysteresisAdjustable overvoltage lockout (OVLO) and hysteresisInitial insertion timer allows ringing and transients to subside after system connectionProgrammable fault timer avoids nuisance tripsActive high open drain POWER GOOD outputAvailable in latched fault and automatic restart versions

Description

The LM5067 negative hot swap controller provides intelligent control of the power supply connections during insertion and removal of circuit cards from a live system backplane or other "hot" power sources. The LM5067 provides in-rush current control to limit system voltage droop and transients. The current limit and power dissipation in the external series pass N-Channel MOSFET are programmable, ensuring operation within the Safe Operating Area (SOA). In addition, the LM5067 provides circuit protection by monitoring for over-current and over-voltage conditions. The POWER GOOD output indicates when the output voltage is close to the input voltage. The input under-voltage and over-voltage lockout levels and hysteresis are programmable, as well as the fault detection time. The LM5067-1 latches off after a fault detection, while the LM5067-2 automatically attempts restarts at a fixed duty cycle. The LM5067 is available in a 10-pin VSSOP package and a 14-pin SOIC package. The LM5067 negative hot swap controller provides intelligent control of the power supply connections during insertion and removal of circuit cards from a live system backplane or other "hot" power sources. The LM5067 provides in-rush current control to limit system voltage droop and transients. The current limit and power dissipation in the external series pass N-Channel MOSFET are programmable, ensuring operation within the Safe Operating Area (SOA). In addition, the LM5067 provides circuit protection by monitoring for over-current and over-voltage conditions. The POWER GOOD output indicates when the output voltage is close to the input voltage. The input under-voltage and over-voltage lockout levels and hysteresis are programmable, as well as the fault detection time. The LM5067-1 latches off after a fault detection, while the LM5067-2 automatically attempts restarts at a fixed duty cycle. The LM5067 is available in a 10-pin VSSOP package and a 14-pin SOIC package.
