1877845 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

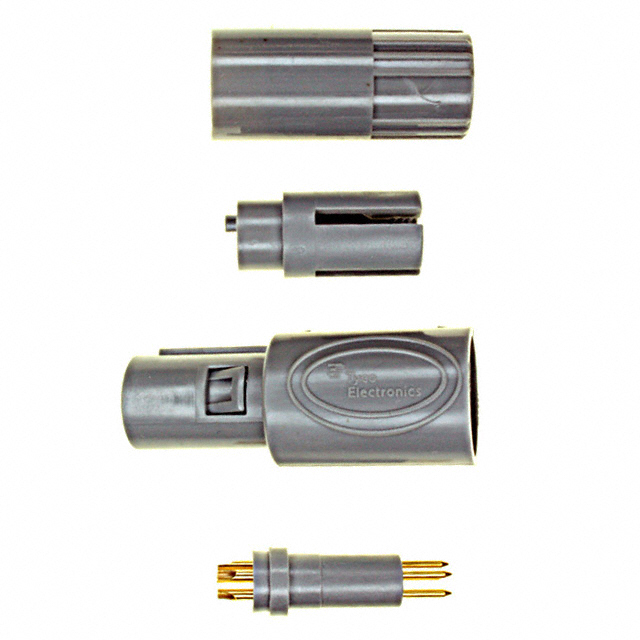

CONN PLUG MALE 5POS SOLDER CUP
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Voltage Rating | Primary Material | Color | Applications | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Connector Type | Insert Material | Mounting Type | Orientation | Current Rating (Amps) | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Latch Lock | -50 °C | 170 °C | Gold | 300 VAC | Plastic | Gray | Medical | Copper Alloy | 29.5 Áin | 0.75 Ám | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | Male Pins Plug | Polyphenylene Sulfide (PPS) | Free Hanging (In-Line) | 0 ° | 7 A | ||
TE Connectivity Raychem Cable Protection | Latch Lock | -50 °C | 170 °C | Gold | 300 VAC | Plastic | Gray Green | Medical | Copper Alloy | 29.5 Áin | 0.75 Ám | Male Pins Plug | Polyphenylene Sulfide (PPS) | Free Hanging (In-Line) | 80 ° | 7 A | 0.209 in 0.256 in | 5.3 mm 6.5 mm |
