2342084 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 23POS VERT 5.08MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Housing Material	Insulation Height	Insulation Height	Contact Material	Termination Style	Color	Pitch [x]	Pitch [x]	Voltage - UL	Positions Per Level	Header Orientation	Mounting Type	Type	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Material Flammability Rating	Features	Current - UL	Number of Levels	Number of Positions

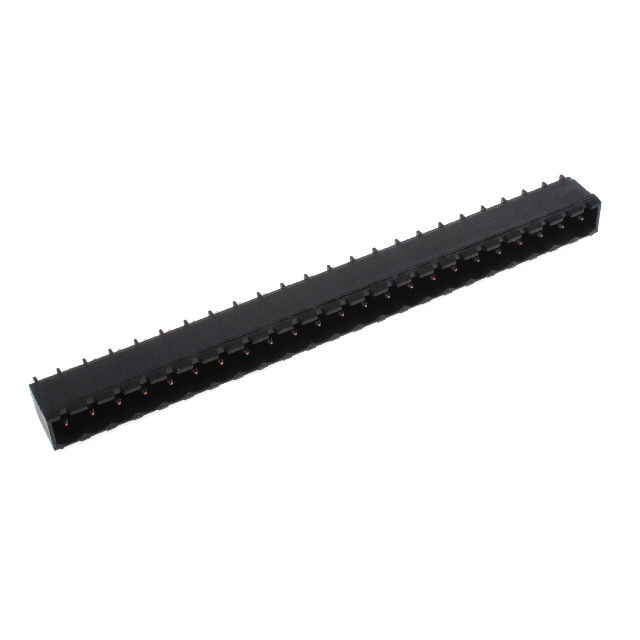

TE Connectivity Raychem Cable Protection 2-2342084-3	-40 °C	105 ░C	23	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	23	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1

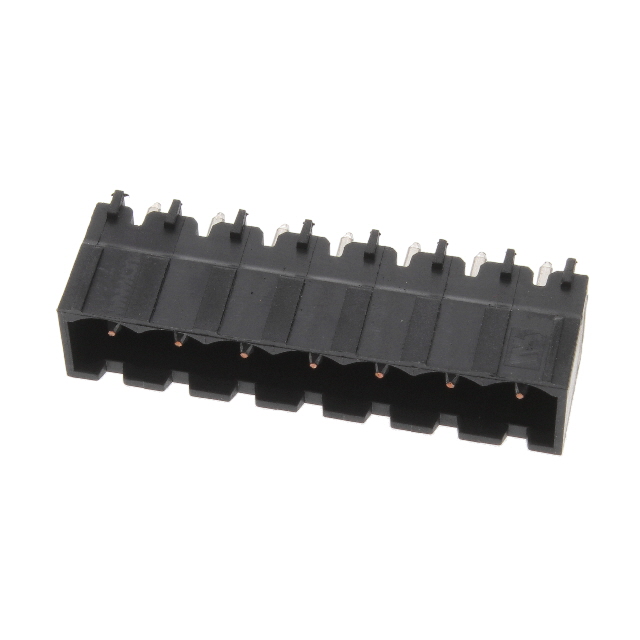

TE Connectivity Raychem Cable Protection 2342084-7	-40 °C	105 ░C	7	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	7	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1
TE Connectivity Raychem Cable Protection 1-2342084-1	-40 °C	105 ░C	11	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	11	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1
TE Connectivity Raychem Cable Protection 1-2342084-0	-40 °C	105 ░C	10	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	10	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1

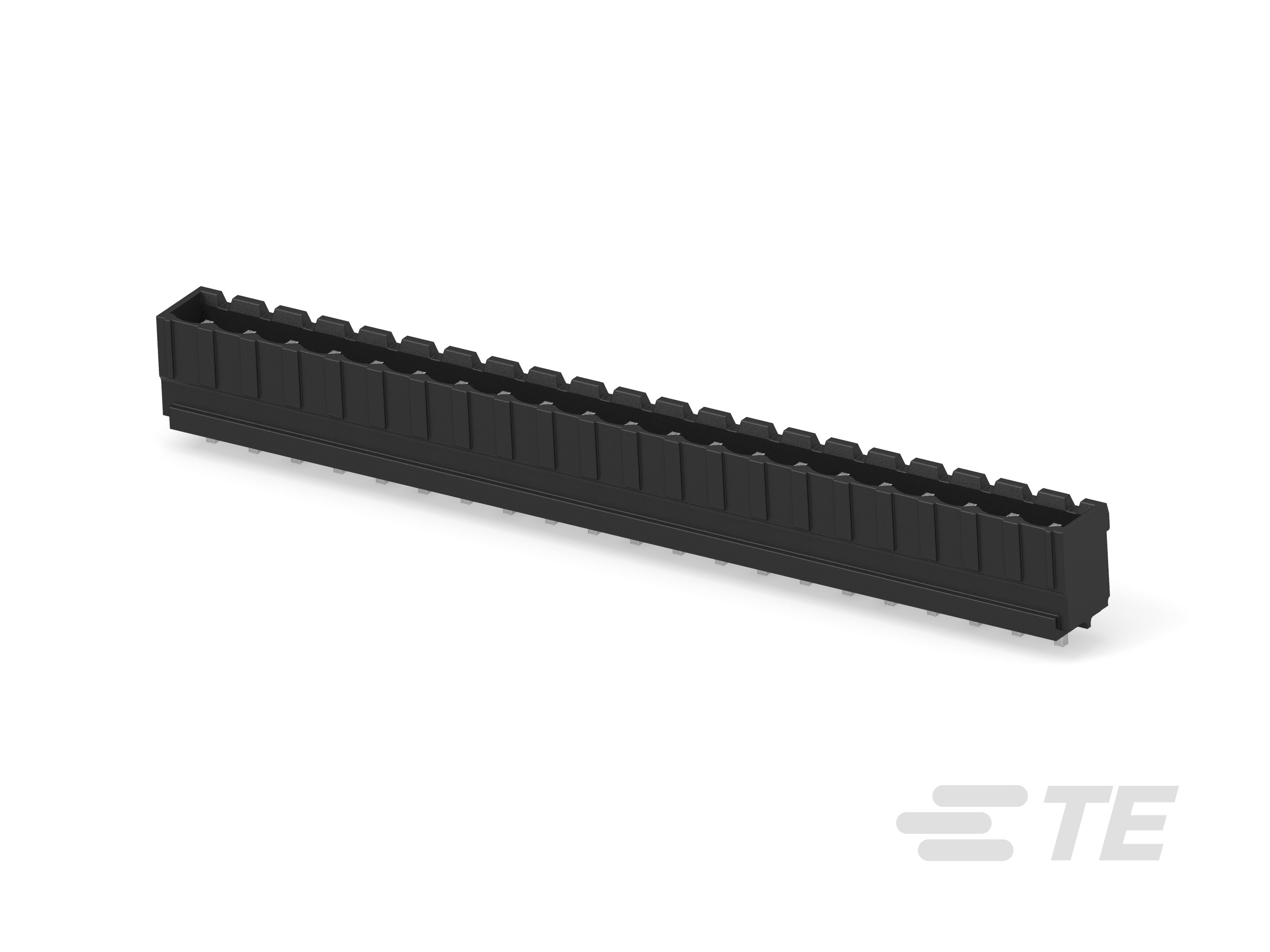

TE Connectivity Raychem Cable Protection 2-2342084-1	-40 °C	105 ░C	21	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	21	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1

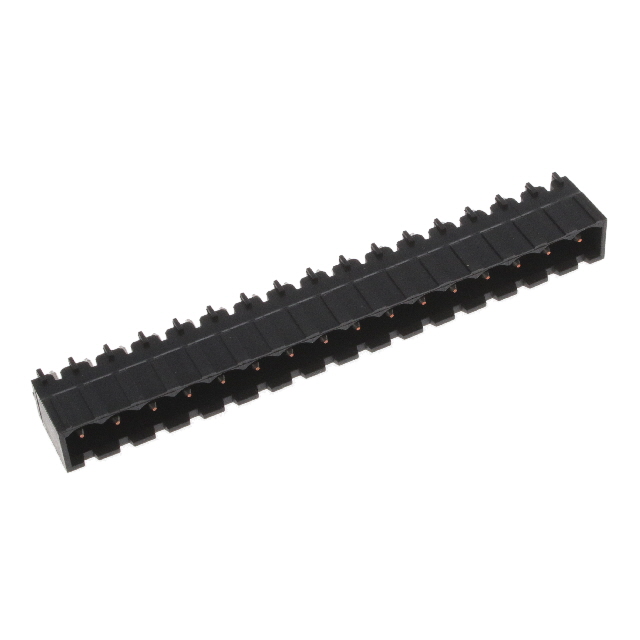

TE Connectivity Raychem Cable Protection 1-2342084-6	-40 °C	105 ░C		Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	16	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1	16

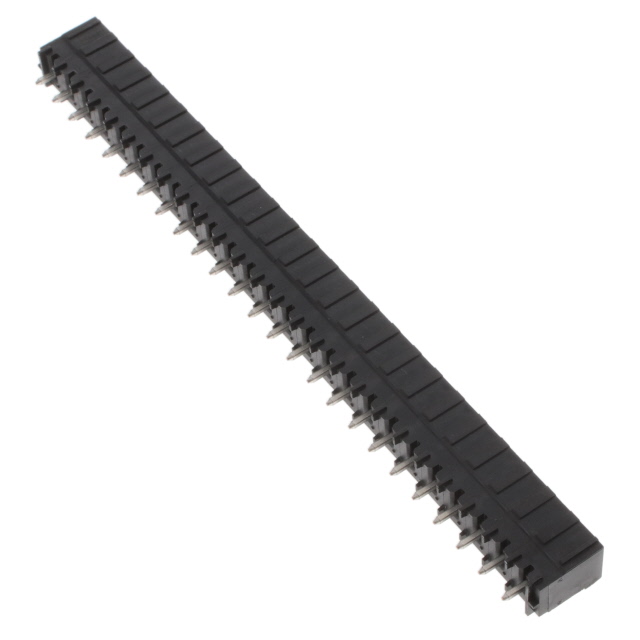

TE Connectivity Raychem Cable Protection 2-2342084-5	-40 °C	105 ░C		Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	25	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1

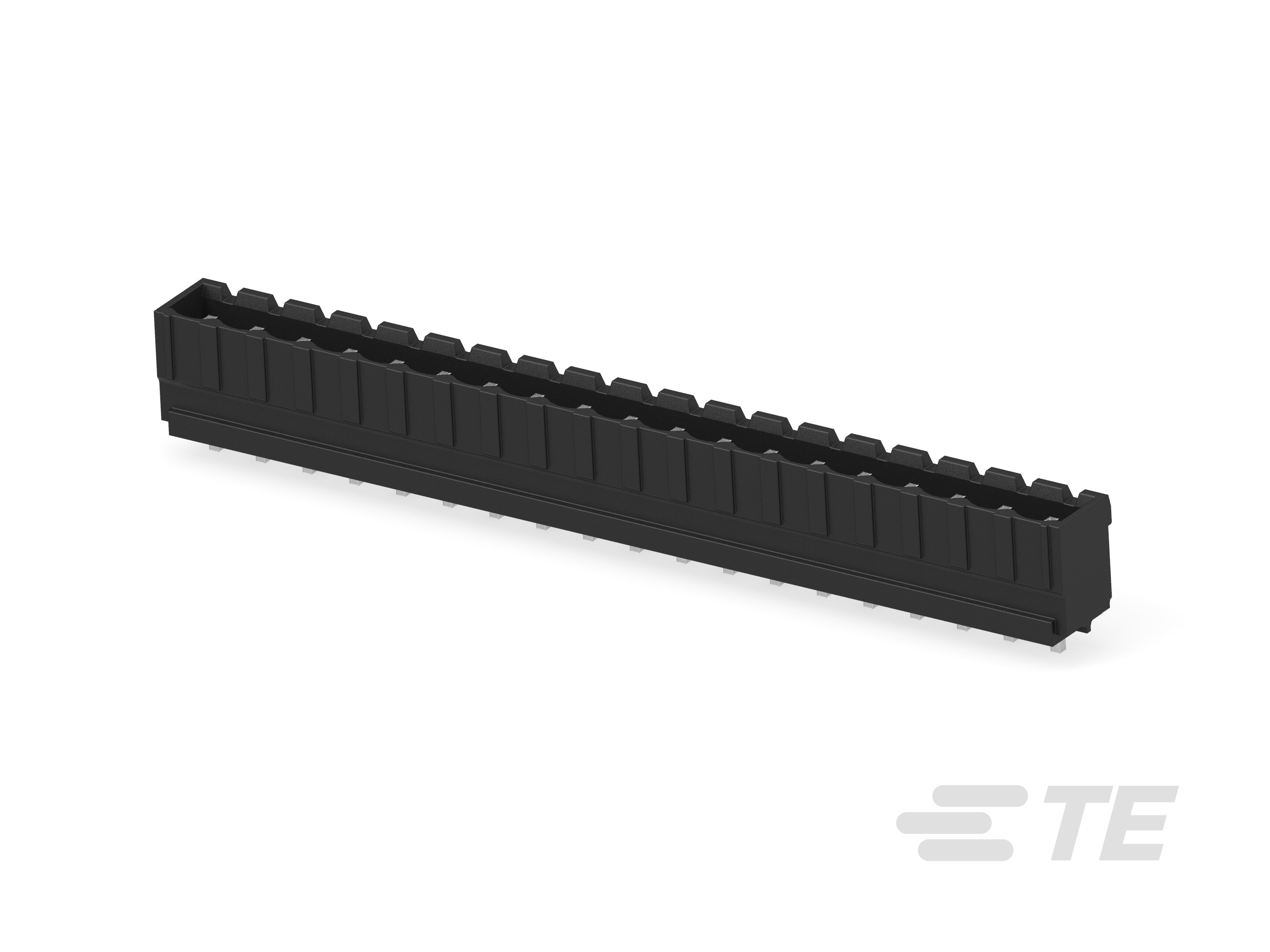

TE Connectivity Raychem Cable Protection 1-2342084-9	-40 °C	105 ░C	19	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	19	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1

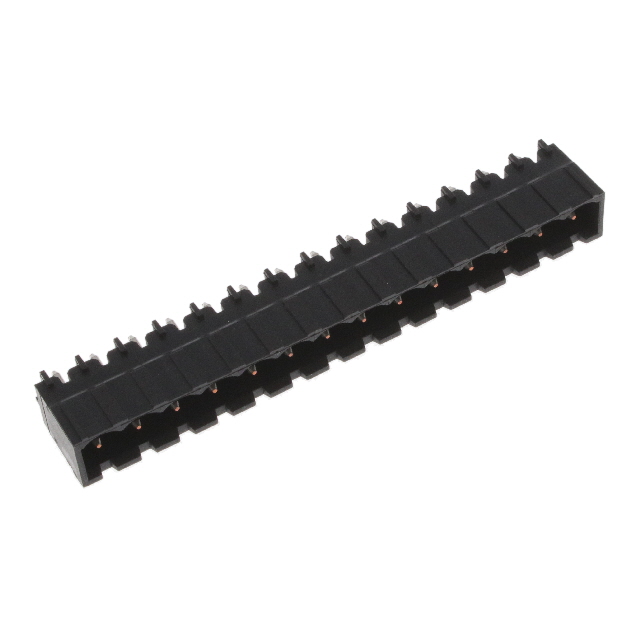

TE Connectivity Raychem Cable Protection 1-2342084-4	-40 °C	105 ░C	14	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	14	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1
TE Connectivity Raychem Cable Protection 2-2342084-0	-40 °C	105 ░C	20	Polyamide (PA) Nylon	0.472 in	12 mm	Copper Alloy	Solder	Black	0.2 in	5.08 mm	300 V	20	Vertical	Through Hole	Header Male Pins Shrouded (4 Side)	0.102 in	2.6 mm	Tin	UL94 V-0	High Temp Housing	11 A	1
