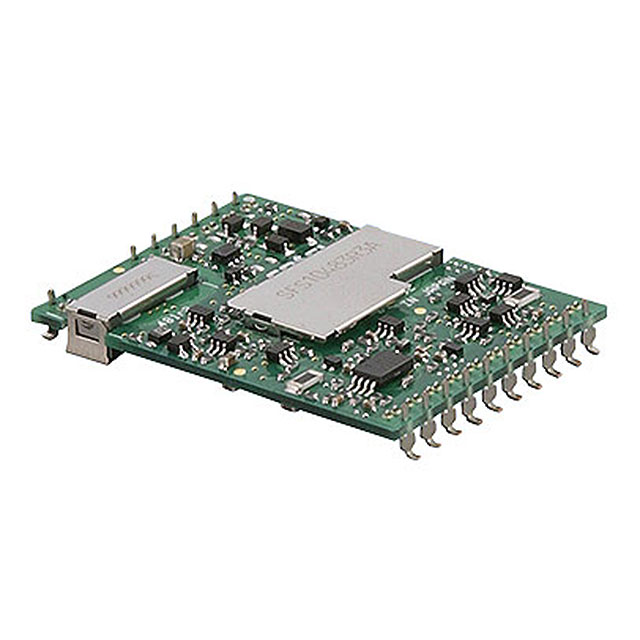

SFS104802 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 2V 6W
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Applications | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Type | Mounting Type | Package / Case | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 0.2 " | 38.7 mm | 1.52 in | 27.2 mm | 5 mm | 1.07 in | 1 | ITE (Commercial) | 2 V | -40 °C | 85 °C | 76 V | 6 W | 36 V | 1.5 kV | 3 A | Isolated Module | Surface Mount | 20-SMD Module 17 Leads | 85 % |
