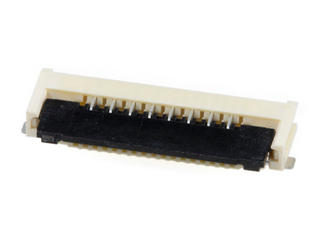

1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
| Part | Mounting Type | Contact Material | Termination | Features | Material Flammability Rating | Contact Finish | Flat Flex Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Cable End Type [custom] | Housing Color | Actuator Color | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness | Connector/Contact Type | Locking Feature | Housing Material | Current Rating (Amps) | Actuator Material | Mating Cycles | Height Above Board | Height Above Board | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | 500 mA | Glass Filled Nylon Polyamide (PA) | 25 | 1.9 mm | 0.075 " | ||
 Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | Glass Filled Nylon Polyamide (PA) | 20 | 1.9 mm | 0.075 " | 125 VDC | 12 | |
 Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | 500 mA | Glass Filled Nylon Polyamide (PA) | 25 | 1.9 mm | 0.075 " | 9 | |
Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | 500 mA | Glass Filled Nylon Polyamide (PA) | 25 | 1.9 mm | 0.075 " | ||
 Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | 500 mA | Glass Filled Nylon Polyamide (PA) | 25 | 1.9 mm | 0.075 " | 22 positions | |
 Molex | Surface Mount Right Angle | Phosphor Bronze | Solder | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Tin Bismuth | FFC FPC | 0.039 in | 1 mm | 39.4 Áin | 1 Ám | Straight Tabbed | Beige | Black | 85 °C | -40 °C | 0.3 mm | Contacts Bottom | Flip Lock | Liquid Crystal Polymer (LCP) Glass Filled | 500 mA | Glass Filled Nylon Polyamide (PA) | 25 | 1.9 mm | 0.075 " | 4 |
