RF1-1D Series

Catalog

SWITCH ROCKER SPDT 10A 125V

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Switch Function	Voltage Rating - DC	Circuit	Approval Agency	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Actuator Type	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Color - Actuator/Cap	Actuator Marking	Quick Connect Size (0.187")	Termination Style	Mounting Type	Ingress Protection

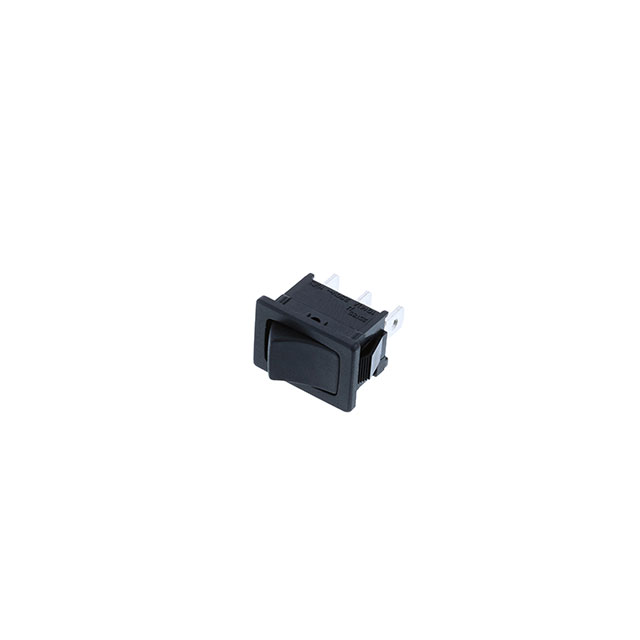

Switch Components RF1-1D-DC-2-B	6000 Cycles	10000 Cycles	On-On	12 V	SPDT	CSA cURus ENEC	125 V	85 °C	-25 °C	16 A 16 A	Concave (Curved)	13 mm	Rectangular	19.2 mm	Black	No Marking	0.187 in	Quick Connect	Panel Mount Snap-In
Switch Components RF1-1D-DC-2-B-4	6000 Cycles	10000 Cycles	On-On	12 V	SPDT	CSA cURus ENEC	125 V	85 °C	-25 °C	16 A 16 A	Concave (Curved)	13 mm	Rectangular	19.2 mm	Black	I II I II	0.187 in	Quick Connect	Panel Mount Snap-In
Switch Components RF1-1D-AC-2-B			On-On		SPDT	CSA cURus ENEC	125 V	85 °C	-25 °C	16 A	Concave (Curved)	13 mm	Rectangular	19.2 mm	Black	No Marking	0.187 in	Quick Connect	Panel Mount Snap-In	IP40
