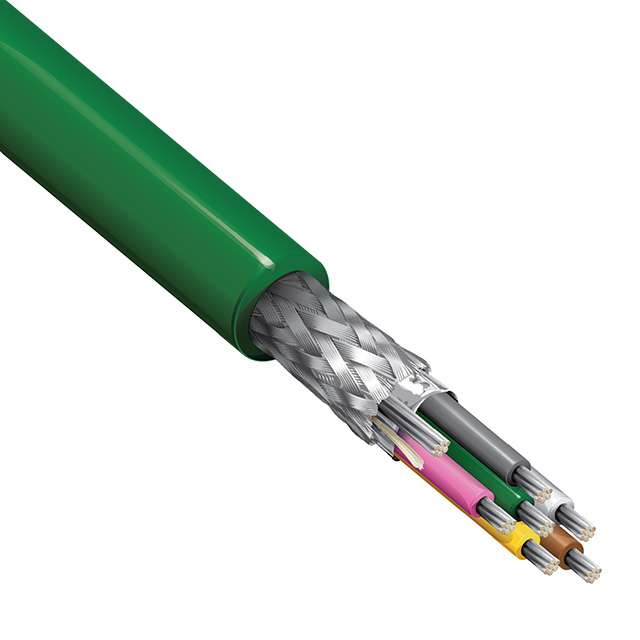

3120A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 6COND 24AWG GRN
| Part | Shield Material | Shield Coverage | Features | Voltage | Length | Length | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Shield Type | Jacket Color | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Drain Wire | 300 VDC | 304.8 m | 1000 ft | 24 AWG | Copper Tinned | 0.035 in | 0.889 mm | Polyurethane (PU) | Multi-Pair | 7 | 32 AWG | 6 | Braid Foil | Green | Polyethylene (PE) | 80 °C | -40 C | 7.04 mm | 0.277 " |
