284043 Series

Catalog

TERMI-BLOK VERTICAL PLUG STACK

Part	Screw Size	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Mounting Type	Contact Mating Finish	Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Plug Wire Entry	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Material Flammability Rating	Number of Positions

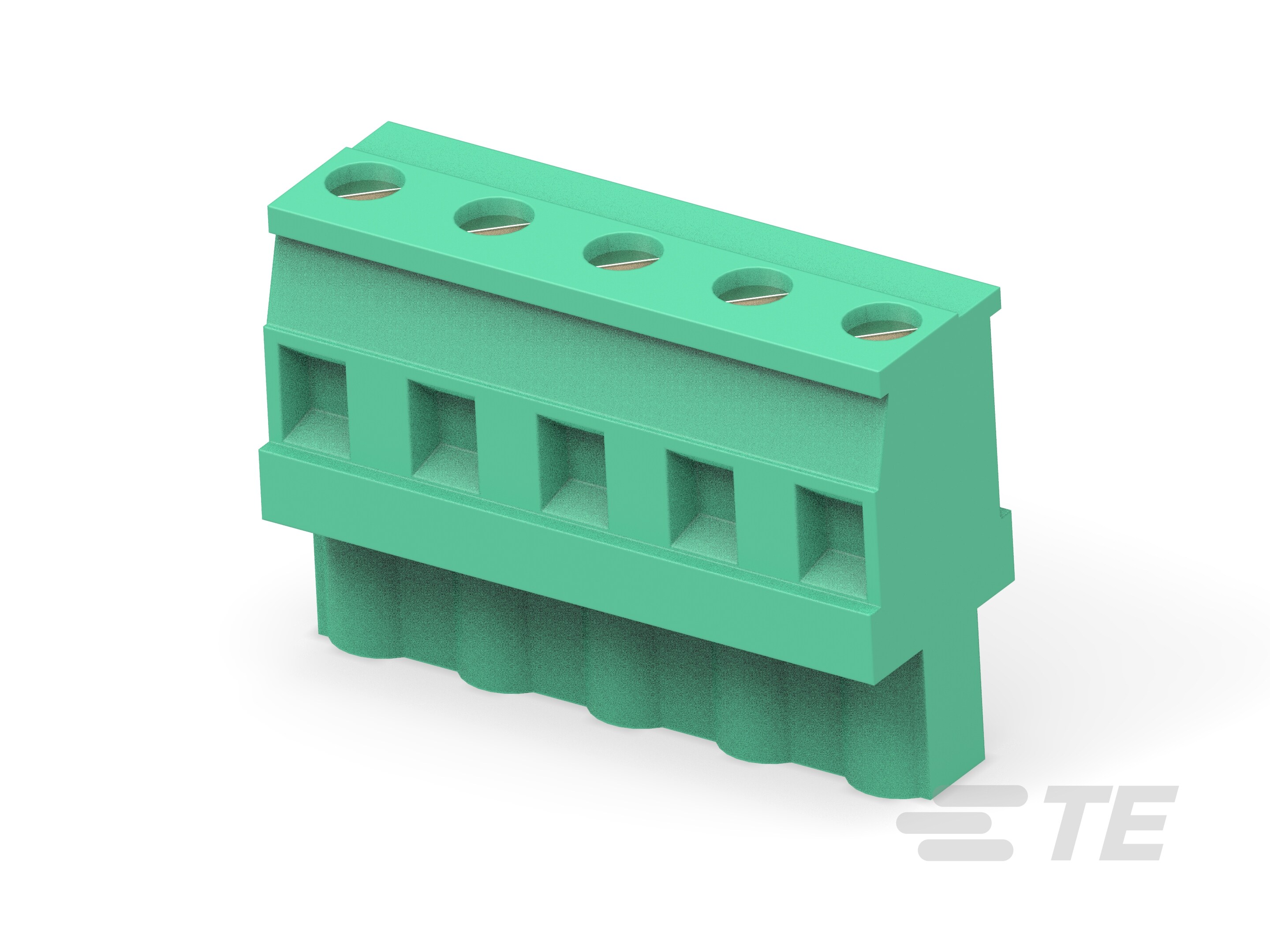

TE Connectivity Raychem Cable Protection 284043-5	M3	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	25 mm	0.984 in	1	0.05 mm²	3 mm²	300 V	7.5 mm	6 mm	Phosphor Bronze	Free Hanging (In-Line)	Tin	Plug Female Sockets	-40 °C	110 °C	5	270 °	Screw - Rising Cage Clamp	30 AWG	12 AWG	Green	UL94 V-0
TE Connectivity Raychem Cable Protection 284043-2	M3	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	25 mm	0.984 in	1	0.05 mm²	3 mm²	300 V	7.5 mm	6 mm	Phosphor Bronze	Free Hanging (In-Line)	Tin	Plug Female Sockets	-40 °C	110 °C	2	270 °	Screw - Rising Cage Clamp	30 AWG	12 AWG	Green	UL94 V-0	2
