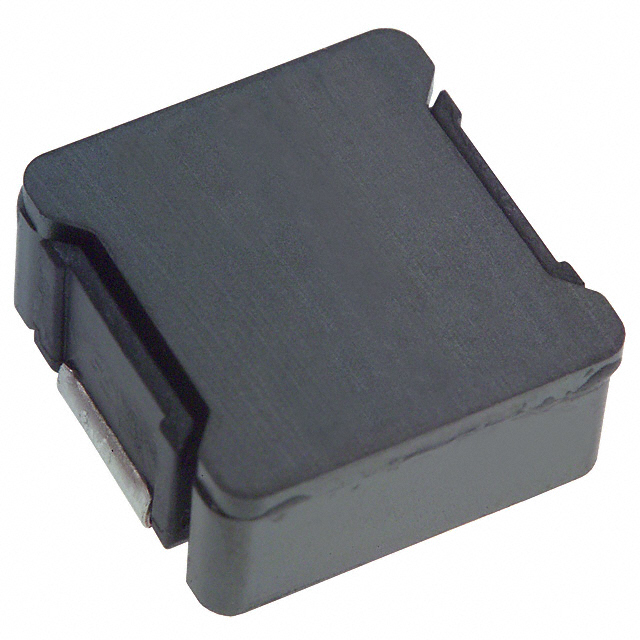

ETQ-PAF Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 1.2UH 22.6A 1 MOHM SMD
| Part | Shielding | Current Rating (Amps) | Tolerance | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Inductance | Mounting Type | Material - Core | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Shielded | 22.6 A | 30 % | 2-SMD J-Lead | 0.354 in | 9 mm | 0.677 " | 0.661 " | 17.2 mm | 16.8 mm | 21.4 A | 100 kHz | 1 mOhm | 1.2 µH | Surface Mount | ||
Panasonic Industrial Automation Sales | Shielded | 17.7 A | 25 % | 2-SMD J-Lead | 0.354 in | 9 mm | 0.677 " | 0.661 " | 17.2 mm | 16.8 mm | 35.2 A | 100 kHz | 1.3 µH | Surface Mount | Ferrite | 1.56 mOhm | |
Panasonic Industrial Automation Sales | Shielded | 22.6 A | 30 % | 2-SMD J-Lead | 0.354 in | 9 mm | 0.677 " | 0.661 " | 17.2 mm | 16.8 mm | 50.4 A | 100 kHz | 1 mOhm | 700 nH | Surface Mount |
