19628100 Series

Manufacturer: HARTING

Catalog

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, HIGH CONSTRUCTION, 2XM32 - HIGH TEMP VERSION

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Connector Type	Lock Location	Thread Size	Housing Material	Size	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Housing Finish

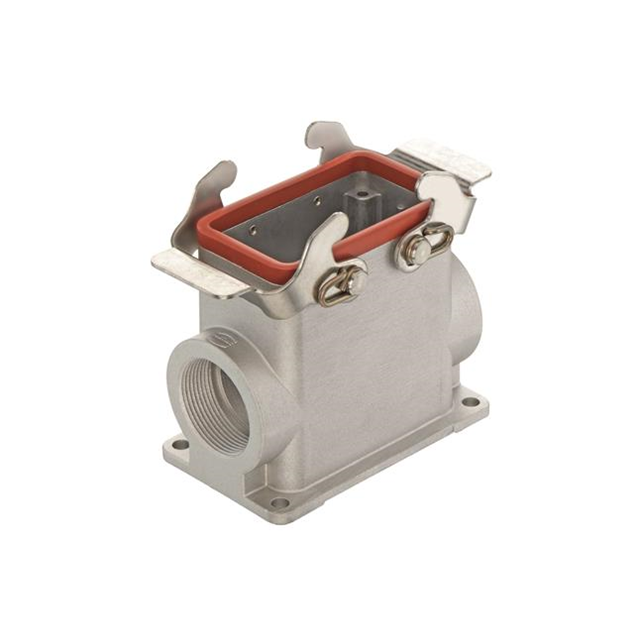

HARTING 19628100292	Side Entry Dual	3.701 " 94 mm	3.181 " 80.8 mm	2.244 in 57 mm	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B	Feed Through	-40 C	200 °C

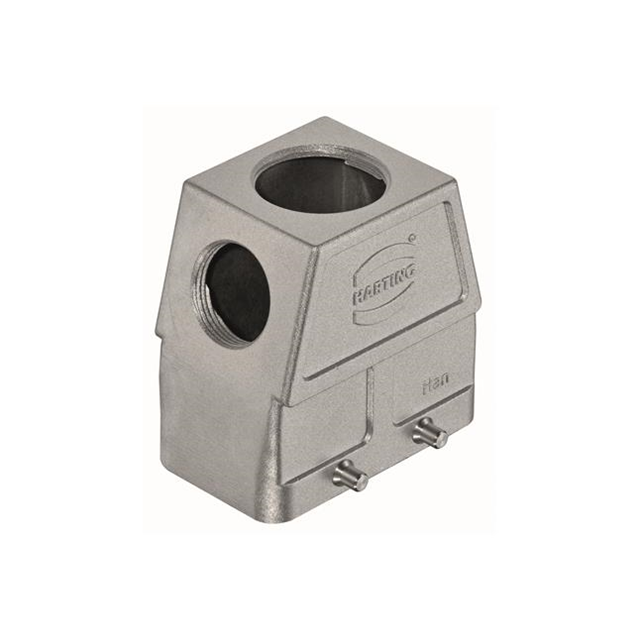

HARTING 19628100596	Side and Top Entry	72.6 mm	72 mm	43 mm		Hood	Locking Clip (2) on Base Bottom	M25 M32		10B				1.693 "	2.835 "	2.858 in

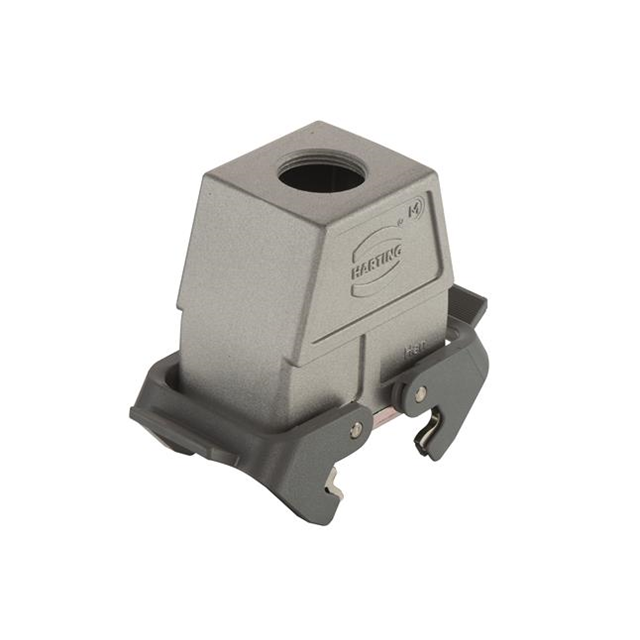

HARTING 19628100766	Top Entry Top or Bottom Entry	72.6 mm	75 mm	43 mm	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (2) on Hood	M25	Aluminum Die Cast	10B	Cable to Cable	-40 C	125 °C	1.693 "	2.953 "	2.858 in
HARTING 19628100272	Side Entry	94 mm	81.95 mm	57 mm	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B	Feed Through	-40 C	125 °C	2.244 "	3.226 in	3.701 in

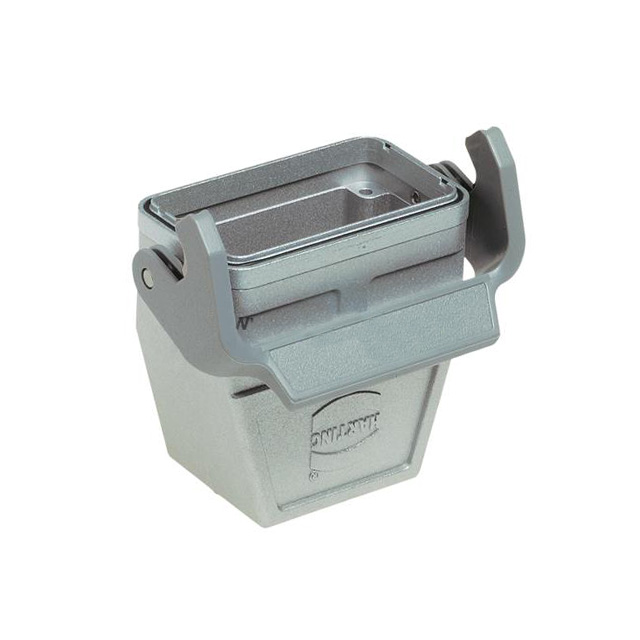

HARTING 19628100757	Bottom Entry Top or Bottom Entry	2.858 "	2.921 "	1.693 "	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood Top	M32	Aluminum Die Cast	10B	Cable to Cable	-40 C	125 °C				43 mm	74.2 mm	72.6 mm

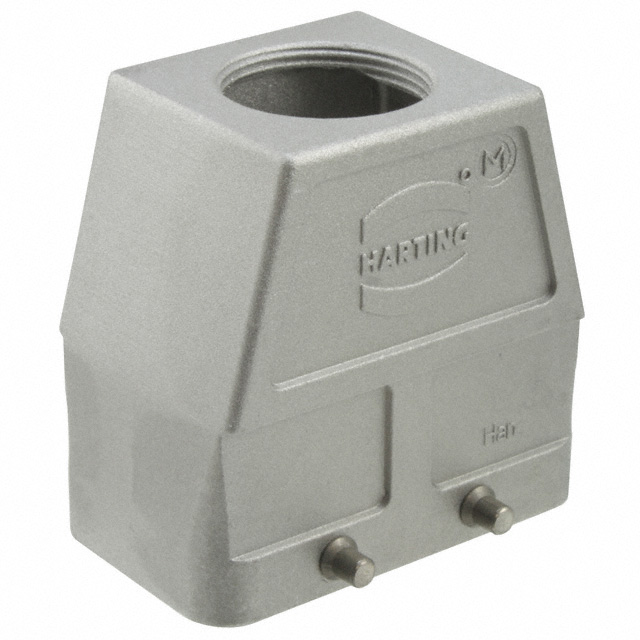

HARTING 19628100427	Top Entry	72.6 mm	72 mm	43 mm	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (2) on Base Bottom	M32	Aluminum Die Cast	10B		-40 C	125 °C	1.693 "	2.835 "	2.858 in				EMC Coating
